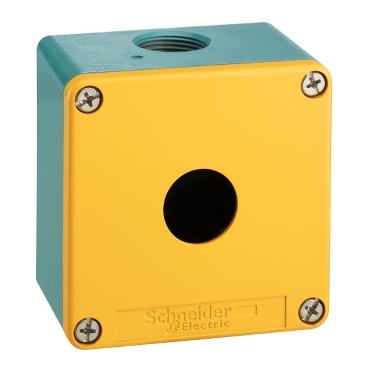

Harmony XAP XB2 SL Die-cast empty control station XAPM, zinc alloy, 1 opening
Item Number: XAPM1321H29
Datasheet
Close
Specifications
Design
Range of product
Harmony XAP
Product or component type
die-cast empty control station
Physical
Device mounting
flush
Ip degree of protection
- IP65 conforming to IEC 60529
- IP69 conforming to NF C 20-010
- IP69K
Ambient air temperature for storage
-40...70 °C
Ambient air temperature for operation
-40...70 °C
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
X
Environmental disclosure
ENVPEP2111017EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Device short name
XAPM
Number of cut-out
1 cut-out
Colour of base of enclosure
blue
Number of vertical rows
1
Compatibility code
XAPM
Protective treatment
TC
Overvoltage category
- class I conforming to IEC 60536
- class I conforming to NF C 20-030
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15 cm
Package 1 width
30 cm
Package 1 length
40 cm
Package 1 weight
590 g
