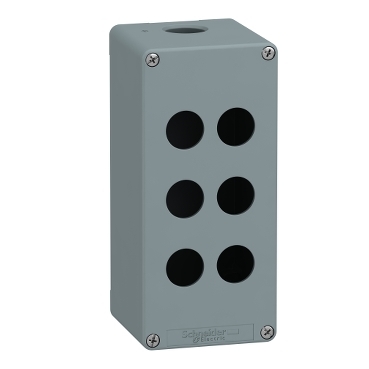

Harmony XAP XB2 SL, Die-cast empty control station, XAPM, Ø 22, zinc alloy, 6 openings

Home ProductsIndustrialHarmonyDie-cast empty control station

Harmony XAP XB2 SL, Die-cast empty control station, XAPM, Ø 22, zinc alloy, 6 openings

Item Number: XAPM3506H29

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XAP

Product or component type

die-cast empty control station

Product destination

for Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

1 hole with blanking plug for ISO 429248 cable gland, clamping capacity: 25-25 mm|1 hole without blanking plug for ISO 429248 cable gland, clamping capacity: 25-25 mm

Device mounting

flush

Ip degree of protection

IP65 conforming to IEC 60529

Net weight

1.13 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2111017EN

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

zinc alloy

Others

Package 1 bare product quantity

1

Device short name

XAPM

Product front plate size

80 x 175 mm

Usable depth

74.5 mm

Number of cut-out

6 cut-outs

Colour of base of enclosure

blue

Colour of cover

blue

Number of vertical rows

2

Compatibility code

XAPM

Protective treatment

TC

Overvoltage category

class I conforming to IEC 60536|class I conforming to NF C 20-030

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

12.2 cm

Package 1 length

18.8 cm

Package 1 weight

1.296 kg
Show all specifications
