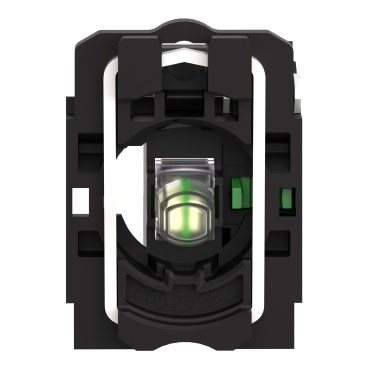

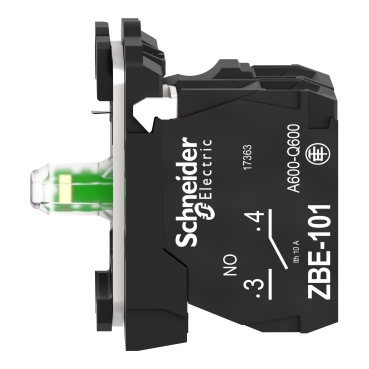

Harmony XB5 Complete body/contact assembly and light block universal LED, 1NO, 230...240V

Item Number: ZB5AW0M11

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110909135	-
5	PAC	53389110909130	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	complete body/contact assembly and light block
Warranty	18 months

Physical

Sale per indivisible quantity	1
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight	0.032 kg
Mechanical durability	5000000 cycles
[ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Standards	UL 508 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 JIS C8201-1
Product certifications	CSA DNV BV LROS (Lloyds register of shipping) UL listed
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404014_V1
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	silver alloy (Ag/Ni)

Others

Legacy weee scope	In
Average percentage of recycled plastic content	16 %
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	ZB5
Fixing collar material	plastic
Head type	standard
Contacts type and composition	1 NO
Contact operation	slow-break
Light source	universal LED
Bulb base	integral LED
Light block supply	direct
Light source colour	white

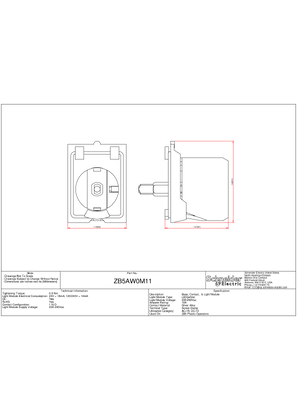

Cad overall width	30 mm
Cad overall height	42 mm
Cad overall depth	32 mm
Terminals description iso n°1	(13-14)NO
Contacts usage	standard
Positive opening	without
Operating travel	2.6 mm (NO changing electrical state) 4.3 mm (total travel)
Operating force	2.3 N NO changing electrical state
Operating torque	0.05 N.m NO changing electrical state
Tightening torque	0.8...1.2 N.m conforming to IEC 60947...1
Shape of screw head	cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
[ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical reliability	λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Signalling type	steady
[us] rated supply voltage	230...240 V AC at 50/60 Hz
Supply voltage limits	195...264 V AC
Current consumption	14 mA
Service life	100000 h at rated voltage and 25 °C
Surge withstand	1 kV conforming to IEC 61000-4-5
Customizable	no
Customizable	0
Compatibility code	ZB5
[us] rated supply voltage	230...240 V
Protective treatment	TH
Electrical shock protection class	class II conforming to IEC 60536
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients	2 kV conforming to IEC 61000-4-4
Resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
Resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
Electromagnetic emission	class B conforming to IEC 55011
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.6 cm
Package 1 width	3.4 cm
Package 1 length	5.4 cm
Package 1 weight	29 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	5.6 cm
Package 2 width	3.4 cm
Package 2 length	26.5 cm
Package 2 weight	147 g
Unit type of package 3	S03
Number of units in package 3	200
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	6.375 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	55 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.22305882352941178
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.009224099821746882
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0088698752228164
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	54.35020672421627
Carbon footprint of the use phase [b2, b3, b4, b6]	54 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.07397076648841354
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	54.665330289278664
Average percentage of recycled plastic content	16 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	5
End of life manual availability	ENVEOLI2404014EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
