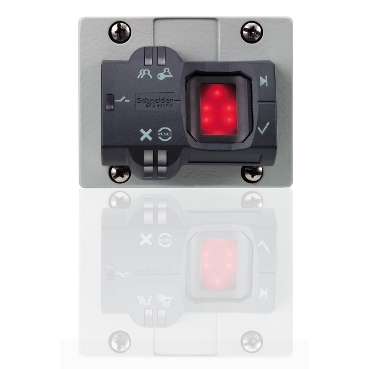

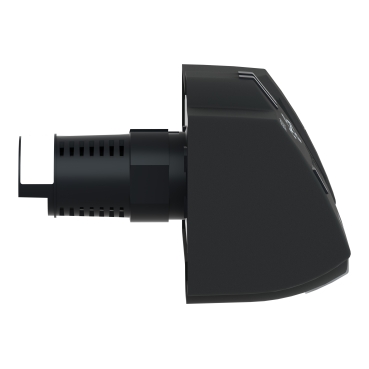

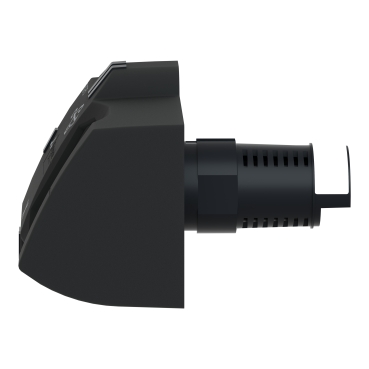

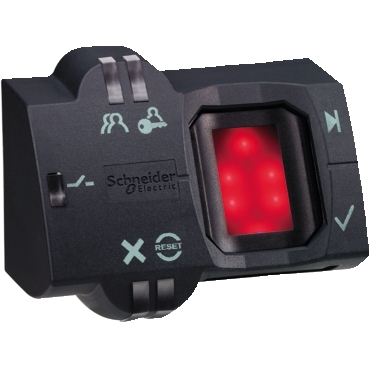

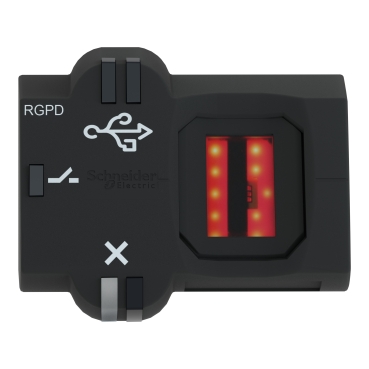

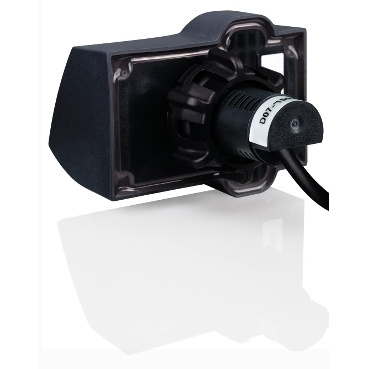

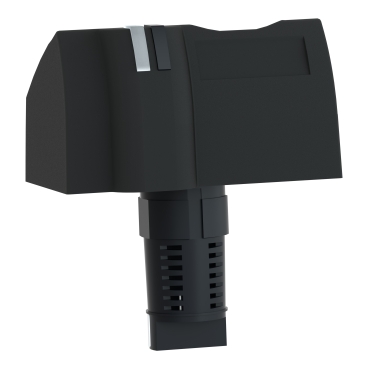

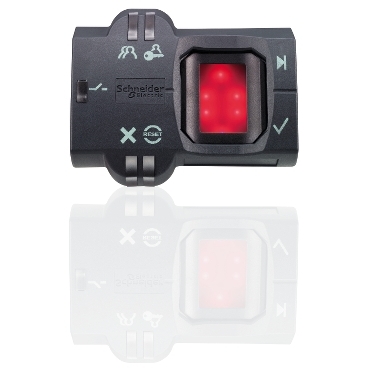

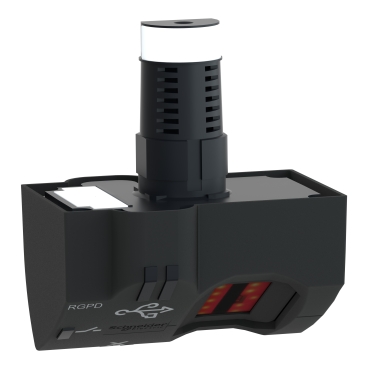

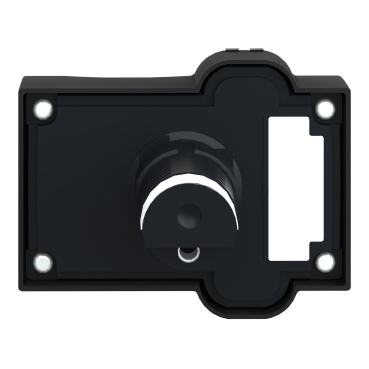

Harmony XB5S Biometric Switch bistable, plastic, 22mm, connection by 2m cable, 24V AC DC

Home ProductsIndustrialHarmonyBiometric Switch

Harmony XB5S Biometric Switch bistable, plastic, 22mm, connection by 2m cable, 24V AC DC

Item Number: XB5S1B2L2

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

biometric switch

Range of product

Harmony XB5S

Warranty

18 months

Physical

Sale per indivisible quantity

1

Ip degree of protection

  • IP20 (rear face) conforming to IEC 60529
  • IP65 (front face) conforming to IEC 60529

Connections - terminals

1 pre-wired cable, 3 x 0.34 mm²

Function of module

bi-stable

Net weight

0.17 kg

Marking

CE

Local signalling

  • 1 LED (green) for output state indicator
  • 1 LED (orange) for administrator's registration mode
  • 1 LED (orange) for operator's registration mode
  • 1 LED (red) for error
  • 1 LED (red) for reset

Protection type

  • short-circuit
  • reverse polarity
  • overload protection

Ambient air temperature for storage

-25...70 °C

Ambient air temperature for operation

-5...50 °C

Standards

  • IEC 61000-6-4
  • IEC 61000-6-2

Product certifications

  • UL
  • CSA

Mercury free

Yes

Rohs exemption information

Yes

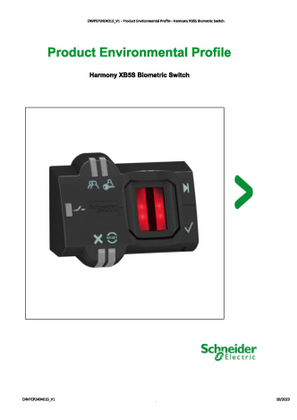

Environmental disclosure

ENVPEP2404013EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Product specific application

  • industrial machines
  • materials handling

Device short name

XB5S

Bezel material

dark grey plastic

Mounting diameter

22 mm

Output type

PNP

Type of operator

stay put

Operator position information

2 positions

Operator profile

fingerprint reader

Memory usage

200 users with up to 2 fingerprints per user

Enclosure material

polyamide PA66

Cable insulation material

PvR

Operating position

  • horizontal position
  • flat surface installation
  • vertical surface installation

Short-circuit protection

250 mA external fuse type gG

[us] rated supply voltage

24 V DC

Electrical connection

free wire ends with 3 wires of 2 m

Supply voltage limits

20...30 V DC

Maximum switching current

200 mA

[ures] residual voltage

1 V closed state

Current consumption

<= 70 mA no-load

Maximum delay first up

3 s + 0.5 ms per user registered

Maximum delay recovery

1.5 s

Maximum delay response

1.5 s

Customizable

no

Customizable

0

[us] rated supply voltage

24 V

Nema degree of protection

NEMA 12

Vibration resistance

  • +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.8 cm

Package 1 width

9.5 cm

Package 1 length

18.5 cm

Package 1 weight

196.0 g

Unit type of package 2

S02

Number of units in package 2

8

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

1.904 kg

Product repair index - dam document id.

XB4BS8442-ENVREPAIR-A-EN

Total lifecycle carbon footprint

173 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

4.7299

Carbon footprint of the manufacturing phase [a1 to a3]

5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.025107

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.10129

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

167.53

Carbon footprint of the use phase [b2, b3, b4, b6]

168 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.19002

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Product repair index

A

Removable battery

N/A

Total lifecycle carbon footprint

172.57631700000002

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Product repair index

A

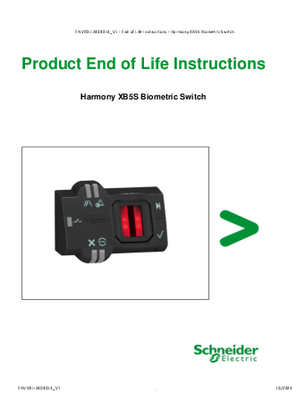

End of life manual availability

ENVEOLI2404013EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Technical illustration

  • Certificate (Sustainability)

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

  • Software - Release

Important: Some software files may need a mySchneider or Club login to download.
Control and signaling units Ø 22 - Harmony Biometric switch XB5 S 24V DC - 3D CAD
ZIP

Control and signaling units Ø 22 - Harmony Biometric switch XB5 S 24V DC - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

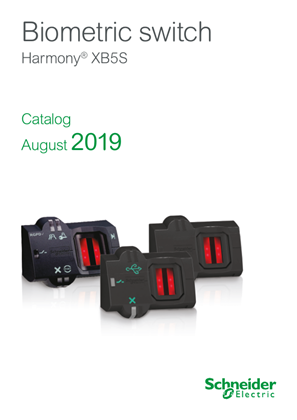

Biometric switch Harmony XB5S Catalog
ZIP

Biometric switch Harmony XB5S Catalog

VERSION

7.0

DATE

02 Aug 2022

REVISION

7.0

DOWNLOAD (ZIP) 3.3 MB
Harmony XB5S Biometric Switch
ZIP

Harmony XB5S Biometric Switch

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 301.9 KB
Harmony XB5S Biometric Switch
ZIP

Harmony XB5S Biometric Switch

VERSION

1.0

DATE

17 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

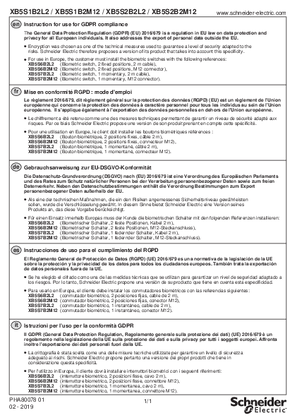

XB5S1B2L2 / XB5S1B2M12 / XB5S2B2L2 / XB5S2B2M12 Instruction for use for GDPR
ZIP

XB5S1B2L2 / XB5S1B2M12 / XB5S2B2L2 / XB5S2B2M12 Instruction for use for GDPR

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 22.5 KB

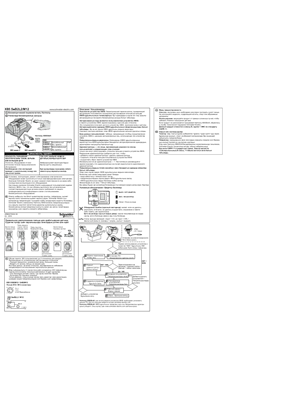

XB5S.B2L2 / XB5S.B2M12 Harmony Biometric Switch, Instruction Sheet (EN)
ZIP

XB5S.B2L2 / XB5S.B2M12 Harmony Biometric Switch, Instruction Sheet (EN)

VERSION

2.0

DATE

20 May 2024

REVISION

2.0

DOWNLOAD (ZIP) 2.5 MB

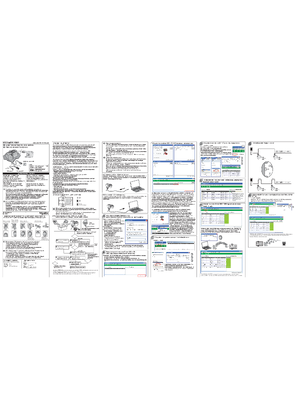

XB5S.B2L2 / XB5S.B2M12 Harmony Biometric Switch, Instruction Sheet
ZIP

XB5S.B2L2 / XB5S.B2M12 Harmony Biometric Switch, Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 20.3 MB

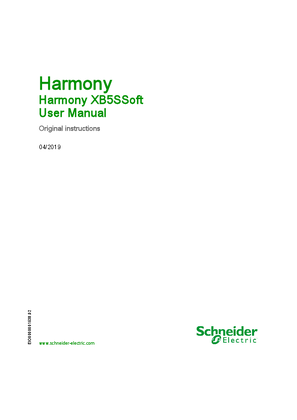

Harmony XB5S Soft, User Manual
ZIP

Harmony XB5S Soft, User Manual

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 1.3 MB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

19 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 300.2 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

19 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 331.6 KB
XB4BS8442 - Repair index
ZIP

XB4BS8442 - Repair index

VERSION

1.0

DATE

26 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 260.8 KB
XB5S Biometric switch
ZIP

XB5S Biometric switch

VERSION

1.0

DATE

05 Aug 2025

REVISION

1.0

DOWNLOAD (ZIP) 327.3 KB

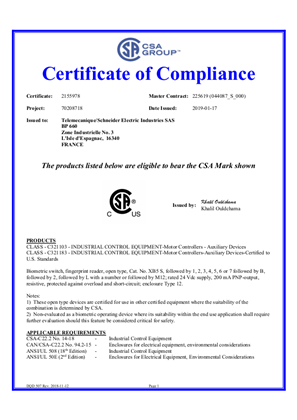

Biometric switches Ø 22 mm
ZIP

Biometric switches Ø 22 mm

VERSION

1.1

DATE

23 Feb 2024

REVISION

1.1

DOWNLOAD (ZIP) 34.4 KB
English
ZIP

English

VERSION

3.2

DATE

23 Oct 2024

REVISION

3.2

DOWNLOAD (ZIP) 39.9 KB

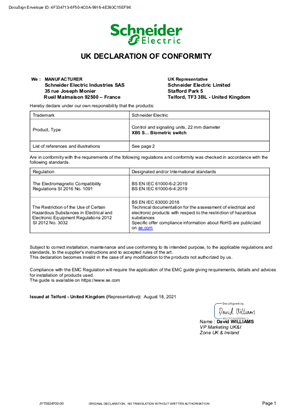

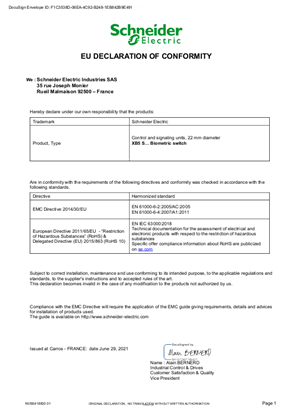

XB5S Biometric switches
