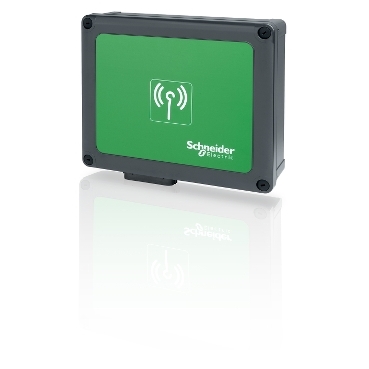

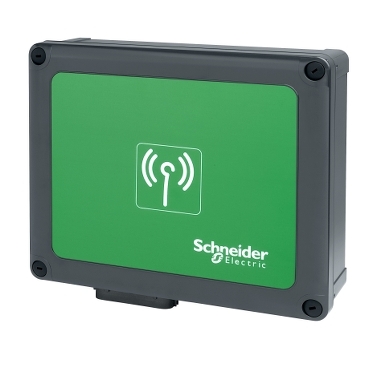

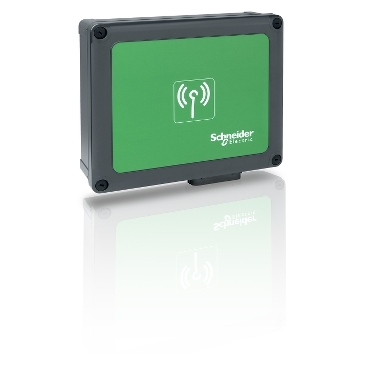

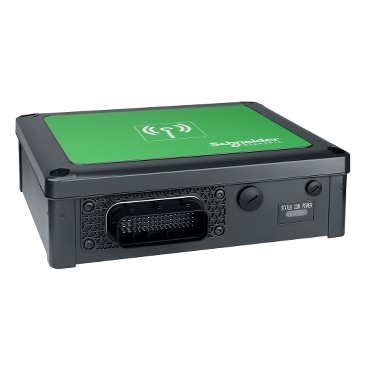

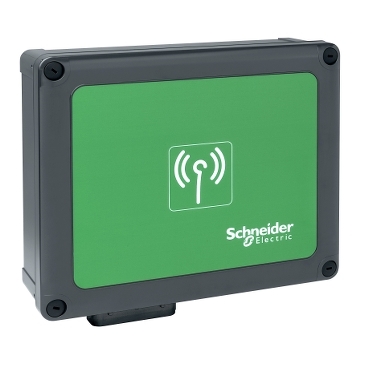

Harmony eXLhoist Base station standard, 18 relay outputs, industrial plug connection, 24...48V AC DC

Item Number: ZARB18H

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width280 mm

Height305 mm

Depth100 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480610417	-

Specifications

Design

Range of product

Harmony eXLhoist

Product or component type

base station

Physical

Connector type

industrial socket

Cable entry

cable gland

Provided equipment

internal antenna

Communication network type

wireless: bluetooth low energy

Transmission frequency

2.4 GHz

Number of channels

Fixing mode

4 holes

Electrical durability

100000 cycles

Mechanical durability

1000000 cycles

Width

280 mm

Height

305 mm

Depth

100 mm

Net weight

1.45 kg

Ip degree of protection

IP65

Standards

IEC 61000-6-2

Relative humidity

0...97 %

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...70 °C

Product certifications

CSA
EAC
UL
KC
CE
C-Tick

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1404028EN

Circularity profile

ENVEOLI1404028EN

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

PC (polycarbonate)

Others

Commercial status history

SESA301466
Wed Oct 25 00:50:00 EDT 2023
From Import Local
From 18 to 19

Package 1 bare product quantity

Device short name

ZARB

Product specific application

hoisting applications
material handling

[us] rated supply voltage

24...48 V AC/DC

Vibration resistance

0.075 mm (f = 10-55 Hz)

Shock resistance

15 gn 11 ms

Nominal output current

0.54 A at 48 V AC conforming to IEC 60947-5-1

Number of relays

Relay type

motion relay outputs with 9 NO contact
auxiliary relay outputs with 7 NO contact
auxiliary relay outputs with 2 NC + 2 NO contact

Safety outputs

2 NC relay outputs

Switching capacity in va

5 VA DC
26 VA AC

Maximum switching current

6.8 mA

Maximum switching voltage

48 V AC/DC (+/- 20 %)

Maximum sensing distance

100 m in free field

Number of alarms

6 programmable alarms

Number of inputs

Service life

10 year(s)

Nema degree of protection

NEMA 4

Pollution degree

Electromagnetic compatibility

resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2
resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3

Radio agreement

SRRC
ICASA
ANATEL
RSS
ARIB
FCC

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10.2 cm

Package 1 width

29.0 cm

Package 1 length

30.2 cm

Package 1 weight

1.693 kg

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

7.613 kg

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony eXLhoist Base station standard, 18 relay outputs, industrial plug connection, 24...48V AC DC

Item Number: ZARB18H

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Quick Start Guide

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Firmware

Software - Release

ZARB18H_CAD

998-19817525_US

Catalog Harmony eXLhoist - Wireless industrial radio remote control English 04/2021

ZARB.. wireless transceiver base station, Product End-of-Life Instructions

ZARB.. wireless transceiver base station, Product Environmental Profile

XARS8D18. / XARS12D18. / XARS8L12. Wireless Remote Control Station, Instruction Sheet (EN)

Harmony eXLhoist - Wireless Remote Control System, User Manual

XARS8D18. - XARS12D18. - XARS8L12. Wireless Remote Control Station, Quick Start Guide

Technical Illustration - Dimensions

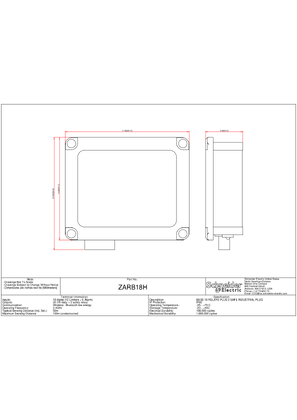

ZARB18H_2D_Drwng_PDF
