Harmony XVB Adaptor for side entry through base unit for modular tower lights

Home ProductsIndustrialHarmonyAdaptor

Harmony XVB Adaptor for side entry through base unit for modular tower lights

Item Number: XVBC14

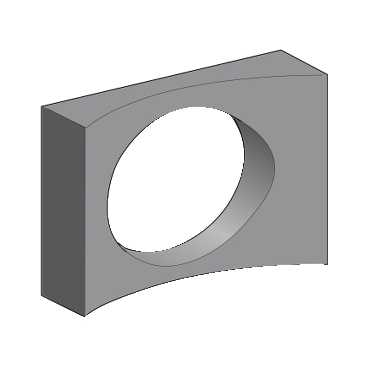

This adaptor for side entry through base unit is designed as an accessory for indicator bank with 70mm diameter. It is used with Pg 13.5 cable gland. It has a light weight and it is compatible with XVBC.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB

Product or component type

adaptor

Product compatibility

XVBC...

Warranty

18 months

Physical

Net weight

0.015 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message

XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.

Package 2 bare product quantity

80

At least in Europe

Weee label

No

Package 1 bare product quantity

1

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Accessory / separate part designation

adaptor for side entry through base unit

Accessory / separate part type

adaptor

Accessory / separate part category

adaptation accessories

Accessory / separate part destination

indicator bank Ø 70 mm

Additional information

to use with Pg 13.5 cable gland

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

3.000 cm

Package 1 length

3.500 cm

Package 1 weight

14.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.418 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.14641187243973158

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.03386054155280213

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00008688509816142112

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.029831625483452348

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.2101909245741475

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
