ClimaSys Metal outlet grille cut-out 95 x 90mm ext dim 120x120mm IP23
Item Number: NSYCAG104X95LM
Metal louvre plate 120 x 120mm made from steel for ClimaSys CV enclosures The kit is made of 1 metal louvre The external width is 120mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 95 x 104mm Painted in grey (RAL 7035) Anti-corrosion protection is ensured by epoxy-polyester powder coating
Datasheet
Specifications
Design
| Range | ClimaSys |
|---|---|
| Product or component type | metal louvre plate |
| Colour | grey (RAL 7035) |
| Surface finish | epoxy-polyester powder |
| Warranty | 18 months |
Physical
| Range compatibility | ClimaSys ClimaSys CV |
|---|---|
| Fixing mode | by screws |
| Height | external: 120 mm |
| Width | external: 120 mm |
| Ip degree of protection | IP23 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2012014_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Device composition | 1 metal louvre |
|---|---|
| Material | steel |
Documents & downloads
-
All
-
CAD Files and Packs
-
Environmental Disclosure
-

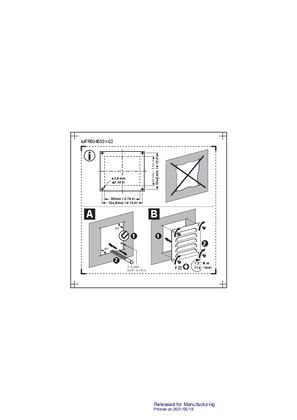

Installation Instruction
-
