ClimaSys Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

Home ProductsIndustrialClimaSysMetal outlet grille

ClimaSys Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

Item Number: NSYCAG170X190LM

Metal louvre plate 220 x 220mm made from steel for enclosures The kit is made of 1 metal louvre The external width is 220mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 170 x 190mm Painted in grey (RAL 7035) Anti-corrosion protection is ensured by epoxy-polyester powder coating

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

metal louvre plate

Colour

grey (RAL 7035)

Surface finish

epoxy-polyester powder

Warranty

18 months

Physical

Fixing mode

by screws

Height

external: 220 mm

Width

external: 220 mm

Ip degree of protection

IP23

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2012014EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Device composition

1 metal louvre

Material

steel

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

15

Package 3 bare product quantity

720

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Product name

ClimaSys CA

Accessory / separate part category

thermal management accessory

Accessory / separate part destination

ClimaSys ventilation system

Mounting location

sides of enclosure

Cut-out dimensions

170 x 190 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

22.000 cm

Package 1 length

22.000 cm

Package 1 weight

617.000 g

Unit type of package 2

CAR

Number of units in package 2

15

Package 2 height

20.000 cm

Package 2 width

40.000 cm

Package 2 length

30.000 cm

Package 2 weight

10.040 kg

Unit type of package 3

PAL

Number of units in package 3

720

Package 3 height

122.500 cm

Package 3 width

110.500 cm

Package 3 length

123.000 cm

Package 3 weight

493.920 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

5142d4bc-fc1f-47cc-87a9-ee48c46bac7e

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ClimaSys CV - Metal Outletgrille cut-out170x190mm - 3D CAD
ZIP

ClimaSys CV - Metal Outletgrille cut-out170x190mm - 3D CAD

VERSION

1.0

DATE

23 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 837.3 KB
PEP-ClimaSys CA - Ventilation grills
ZIP

PEP-ClimaSys CA - Ventilation grills

VERSION

1.0

DATE

29 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 324.9 KB

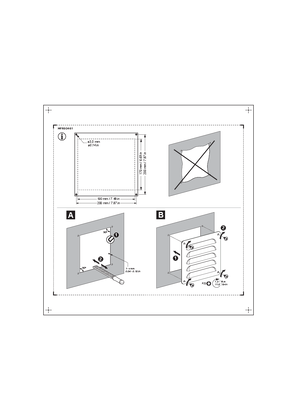

Metal outlet grille 220x220 IP23 - Instruction Sheet
