ClimaSys Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

Item Number: NSYCAG130X110LM

1 PCE 0

Metal louvre plate 160 x 160mm made from steel for enclosures The kit is made of 1 metal louvre The external width is 160mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 110 x 130mm Painted in grey (RAL 7035) Anti-corrosion protection is ensured by epoxy-polyester powder coating

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480151828	-
30	CV	43606480151826	-

Specifications

Design

Range	ClimaSys
Product or component type	metal louvre plate
Colour	grey (RAL 7035)
Surface finish	epoxy-polyester powder
Warranty	18 months

Physical

Fixing mode	by screws
Height	external: 160 mm
Width	external: 160 mm
Ip degree of protection	IP23
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2012014_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 metal louvre
Material	steel

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	30
Package 3 bare product quantity	600
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	ClimaSys CA
Accessory / separate part category	thermal management accessory
Accessory / separate part destination	ClimaSys ventilation system
Mounting location	sides of enclosure

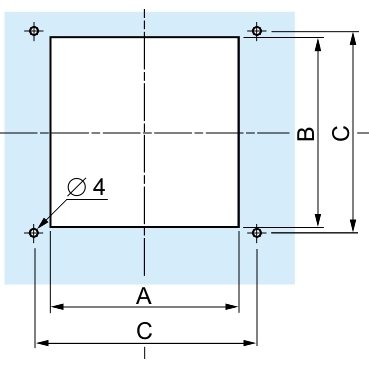

Cut-out dimensions	110 x 130 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.000 cm
Package 1 width	16.500 cm
Package 1 length	16.500 cm
Package 1 weight	324.000 g
Unit type of package 2	CAR
Number of units in package 2	30
Package 2 height	20.000 cm
Package 2 width	40.000 cm
Package 2 length	30.000 cm
Package 2 weight	9.720 kg
Unit type of package 3	PAM
Number of units in package 3	600
Package 3 height	50.000 cm
Package 3 width	100.000 cm
Package 3 length	120.000 cm
Package 3 weight	207.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.8272598138010023
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.6421075845710166
Carbon footprint of the distribution phase [a4]	0.6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.09554767203091036
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5938139845139263
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.1587290549168556
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	28e732c0-1b13-4b25-95ad-98dcec661f9e
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Operating Manuals
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

ClimaSys Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23

Item Number: NSYCAG130X110LM

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Environmental Disclosure

Installation Instruction

Operating Manuals

Declaration of Conformity

Declaration of Conformity (Sustainability)

ClimaSys CV - Metal Outletgrille cut-out130x110mm - 3D CAD

PEP-ClimaSys CA - Ventilation grills

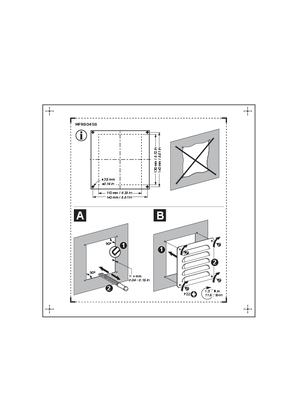

Metal outlet grille 120x120mm IP23 - instruction Sheet
