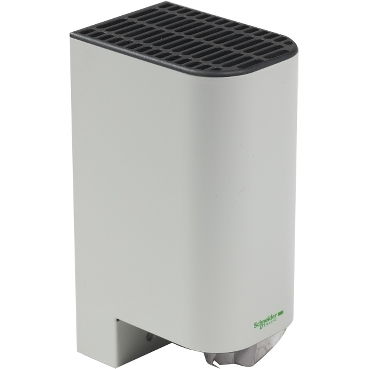

ClimaSys, Compact resistance heater, heating resistance 150W,110-250V insulate

Home ProductsIndustrialClimaSysCompact resistance heater

ClimaSys, Compact resistance heater, heating resistance 150W,110-250V insulate

Item Number: NSYCR150WU2C

Where To Buy

Datasheet

Download

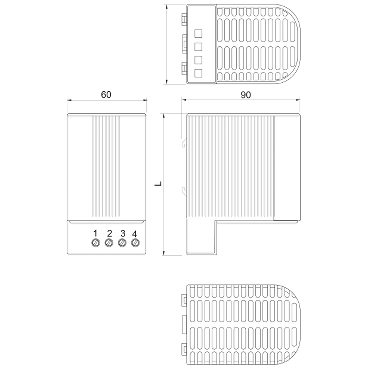

Product Dimensions

Width icon

Widthexternal: 60 mm

Height icon

Heightexternal: 150 mm

Depth icon

Depthexternal : 90 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

resistance heater

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20

Electrical insulation class

class II

Product certifications

VDE|UL

Height

external: 150 mm

Width

external: 60 mm

Depth

external : 90 mm

Fixing mode

by clips

Mounting support

35 mm DIN rail

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2103011EN

Circularity profile

N/A

Material

Material

body: extruded aluminium|cover: plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

500

Product name

ClimaSys CR

Power range

150 W

Input voltage

120...240 V AC 50/60 Hz

Electrical connection

4 screw terminals 2.5 mm²

Operating position

vertical

Condition of use

electrical protection is needed|heaters must be installed with a thermal controller|air sealed enclosure

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

10.0 cm

Package 1 length

17.0 cm

Package 1 weight

492.0 g

Unit type of package 2

P12

Number of units in package 2

500

Package 2 height

120 cm

Package 2 width

80 cm

Package 2 length

105 cm

Package 2 weight

289 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity

ClimaSys PTC - Heating resistance 20 to 150W insulate - 3D CAD
ZIP

ClimaSys PTC - Heating resistance 20 to 150W insulate - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
CAD Drawing Package for Thermal components
ZIP

CAD Drawing Package for Thermal components

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 182.1 MB
CAD Drawing Package for Thermal components
ZIP

CAD Drawing Package for Thermal components

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 60.8 MB
Universal Enclosures - Quick Selection Guide (2024 EN)
ZIP

Universal Enclosures - Quick Selection Guide (2024 EN)

VERSION

2.0

DATE

04 Jul 2024

REVISION

2.0

DOWNLOAD (ZIP) 15.4 MB
Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide
ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB

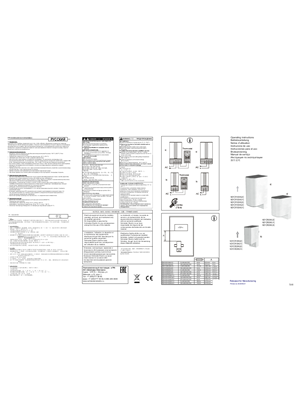

INSTRUCTIONS COVERED HEATERS
ZIP

INSTRUCTIONS COVERED HEATERS

VERSION

2.0

DATE

21 May 2024

REVISION

2.0

DOWNLOAD (ZIP) 3.8 MB

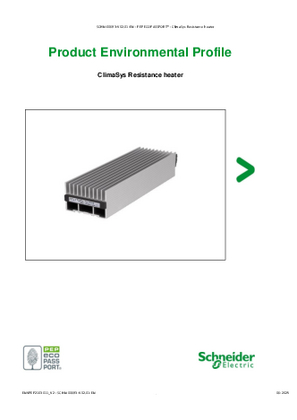

PEP-ClimaSys Resistance heater
ZIP

PEP-ClimaSys Resistance heater

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 307.2 KB
ProClima - Web Software User Guide (English)
ZIP

ProClima - Web Software User Guide (English)

VERSION

1.0

DATE

12 Jan 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB
Control Panel - Technical Guide - How to reduce damage to components through effective thermal management
ZIP

Control Panel - Technical Guide - How to reduce damage to components through effective thermal management

VERSION

3.0

DATE

18 Feb 2022

REVISION

3.0

DOWNLOAD (ZIP) 9 MB

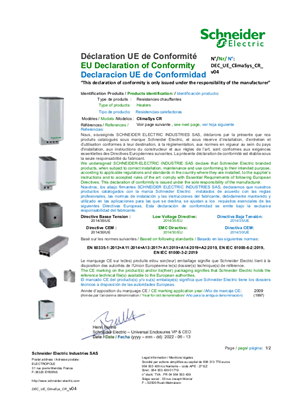

DoC_UE_Climasys_Heaters
