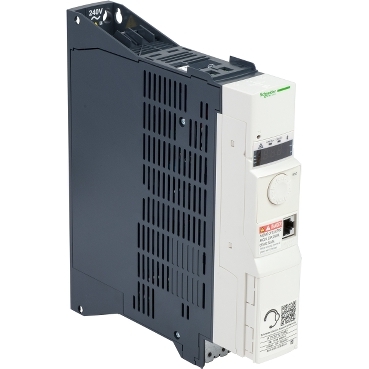

Altivar 32 Variable speed drive ATV32 0,75 kw, 200 V, 1 phase, with heat sink

Item Number: ATV32H075M2

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height325 mm

Depth245 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480299797	-

Specifications

Design

Range of product	Altivar 32
Product or component type	variable speed drive
Product destination	asynchronous motors synchronous motors
Warranty	18 months

Physical

Function available	-
Local signalling	1 LED red for drive voltage 1 LED green for CANopen run 1 LED red for CANopen error 1 LED red for drive fault
Supply	internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Protection type	input phase breaks: drive overcurrent between output phases and earth: drive overheating protection: drive short-circuit between motor phases: drive thermal protection: drive
Communication port protocol	CANopen Modbus
Connector type	1 RJ45 (on front face) for Modbus/CANopen
Width	45 mm
Height	325 mm
Depth	245 mm
Net weight	2.4 kg
Standards	EN 61800-3 environments 1 category C2 EN 55011 class A group 1 EN/IEC 61800-5-1 EN/IEC 61800-3 EN 61800-3 environments 2 category C2
Product certifications	C-Tick NOM 117 GOST UL CSA
Marking	CE
Ip degree of protection	IP20 conforming to EN/IEC 61800-5-1
Relative humidity	5...95 % without condensation conforming to IEC 60068...2-3 5...95 % without dripping water conforming to IEC 60068...2-3
Ambient air temperature for operation	-10...50 °C without derating 50...60 °C with derating factor
Ambient air temperature for storage	-25...70 °C

Others

Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product specific application	complex machines
Assembly style	with heat sink
Component name	ATV32
Emc filter	Class C2 EMC filter integrated
Network number of phases	1 phase
[us] rated supply voltage	200...240 V - 15...10 %
Supply voltage limits	170...264 V
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Motor power kw	0.75 kW at 200...240 V
Motor power hp	1 hp at 200...240 V
Line current	10.1 A for 200 V 1 phase 0.75 kW / 1 hp 8.5 A for 240 V 1 phase 0.75 kW / 1 hp
Apparent power	2 kVA at 240 V 1 phase 0.75 kW / 1 hp
Prospective line isc	1 kA for 1 phase
Nominal output current	4.8 A at 4 kHz 240 V 0.75 kW / 1 hp
Maximum transient current	7.2 A for 60 s 0.75 kW / 1 hp
Output frequency	0.0005...0.599 kHz
Nominal switching frequency	4 kHz
Switching frequency	2...16 kHz adjustable
Speed range	1...100 for asynchronous motor in open-loop mode
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
Torque accuracy	+/- 15 %
Transient overtorque	170...200 %
Braking torque	<= 170 % with braking resistor
Asynchronous motor control profile	voltage/frequency ratio - Energy Saving, quadratic U/f flux vector control without sensor - Energy Saving, NoLoad law flux vector control without sensor, standard voltage/frequency ratio, 5 points voltage/frequency ratio, 2 points
Synchronous motor control profile	vector control without sensor
Regulation loop	adjustable PID regulator
Motor slip compensation	adjustable 0...300 % automatic whatever the load not available in voltage/frequency ratio (2 or 5 points)
Output voltage	<= power supply voltage
Noise level	43 dB conforming to 86/188/EEC
Insulation	electrical between power and control
Electrical connection	screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control) removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor) screw terminal, clamping capacity: 1.5...4 mm², AWG 14...AWG 10 (power supply)
Tightening torque	0.5 N.m, 4.4 lb/ft (control) 0.7 N.m, 7.1 lb/ft (motor/braking resistor) 0.6 N.m, 5.3 lb/ft (power supply)
Analogue input number	3
Analogue input type	AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
Sampling duration	2 ms (AI1, AI2, AI3) - analog input(s) 2 ms (AO1) - analog input(s)
Response time	LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s) R1A, R1B, R1C 2 ms for relay output(s) R2A, R2C 2 ms for relay output(s)
Accuracy	+/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C +/- 1 % (AO1) for a temperature of 25 °C +/- 2 % (AO1) for a temperature of -10...60 °C
Linearity error	+/- 0.2...0.5 % of maximum value (AI1, AI2, AI3) +/- 0.3 % (AO1)
Analogue output number	1
Analogue output type	AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits
Discrete output number	3
Discrete output type	configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles configurable relay logic: (R2A, R2B) NO - 100000 cycles logic: (LO)
Minimum switching current	5 mA at 24 V DC for configurable relay logic
Maximum switching current	R1: 3 A at 250 V AC resistive load, cos phi = 1 R1: 4 A at 30 V DC resistive load, cos phi = 1 R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 R2: 5 A at 250 V AC resistive load, cos phi = 1 R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number	7
Discrete input type	programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC switch-configurable PTC probe (LI6)24...30 V DC safe torque off (STO)24...30 V DC - 1500 Ohm
Discrete input logic	negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1) positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps	linear CUS deceleration ramp adaptation ramp switching S deceleration ramp automatic stop DC injection U
Braking to standstill	by DC injection
Physical interface	2-wire RS 485 for Modbus
Transmission frame	RTU for Modbus
Type of polarization	no impedance for Modbus
Number of addresses	1...127 for CANopen 1...247 for Modbus
Method of access	slave CANopen
Electromagnetic compatibility	1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5 conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6 electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4 electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2 radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3 voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Option card	communication card for CANopen daisy chain communication card for CANopen open style communication card for DeviceNet communication card for EtherNet/IP communication card for Profibus DP V1
Pollution degree	2 conforming to EN/IEC 61800-5-1
Vibration resistance	1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Operating altitude	<= 1000 m without derating 1000...2000 m with current derating 1 % per 100 m
Operating position	vertical +/- 10 degree
Unit type of package 1	PCE
Number of units in package 1	1
Sustainable packaging	No
Warranty (in months)	18
