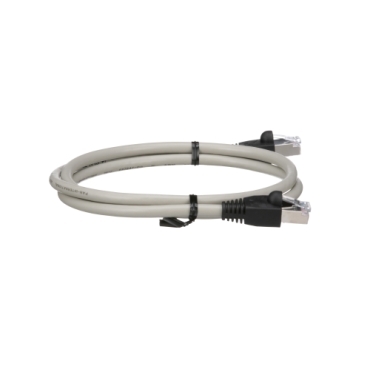

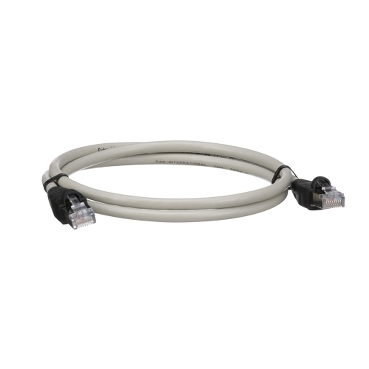

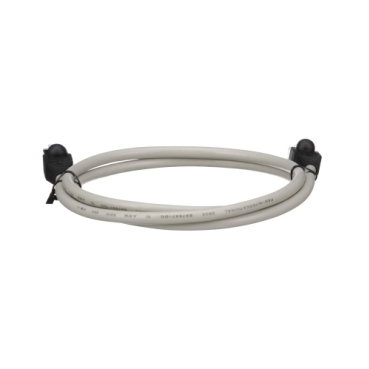

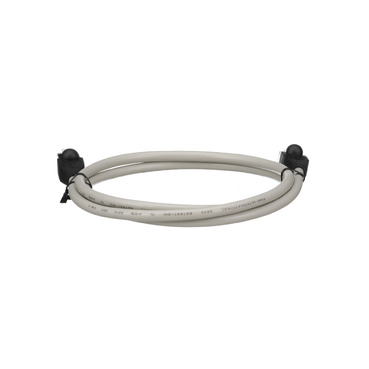

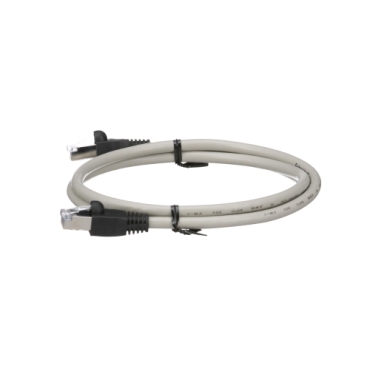

Altivar 71 Remote cable 1m, for graphic display terminal
Item Number: VW3A1104R10
This remote mounting cordset is an accessory of variable speed drives remote graphic terminal. It is equipped with 2 RJ45 connectors. It enables connection of the variable speed drive and the remote mounting kit VW3A1102. It is three meters long.
Datasheet
Specifications
Design
Range of product
Product or component type
Product compatibility
- VW3M1701
- VW3A1101
Warranty
Physical
Range compatibility
- Altivar 61
- Altistart 22
- Altivar 12
- Altivar 212
- Altivar 71
- Altivar Machine ATV340
- Altivar 32
- Altivar 71Q
- Altivar 312
- Easy Altivar 610
- Altivar 61Q
- Altivar Process ATV600
- Altivar Machine ATV320
- Easy Altivar 310
- Altivar 312 Solar
- Lexium 32
- Altivar Process ATV900
Connector type
Net weight
Reach regulation
Reach free of svhc
Eu rohs directive
China rohs regulation
Rohs exemption information
California proposition 65
Others
Substance regulation data deliverable
If one of the deliverables is not relevant please give the reason
Life cycle assessment data
Package 1 bare product quantity
Accessory / separate part category
Accessory / separate part type
Accessory / separate part destination
Cable length
Electrical connection
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
Technical Data Catalogues
-
Installation Instruction
-
Handout
Discover catalog for EcoStruxure Automation Expert
VERSION
9.0
DATE
10 May 2025
REVISION
9.0
Discover catalog for Altivar Soft Starter ATS430
VERSION
1.0
DATE
18 Apr 2025
REVISION
1.0
Discover catalog for Altivar Process ATV900 variable speed drives
VERSION
12.0
DATE
11 Apr 2025
REVISION
12.0
Discover catalog for Altivar Process ATV600 variable speed drives
VERSION
12.0
DATE
11 Apr 2025
REVISION
12.0
Discover the catalog of Easy Altivar 610 variable speed drives range.
VERSION
14.1
DATE
09 Apr 2025
REVISION
14.1
Discover the catalog for Altivar Machine ATV340
VERSION
6.0
DATE
03 Mar 2025
REVISION
6.0
Discover the catalog for Easy Altivar 310 variable speed drives
VERSION
6.0
DATE
13 Feb 2025
REVISION
6.0
Discover the catalog for Altivar Machine ATV320 variable speed drive
VERSION
10.0
DATE
04 Feb 2025
REVISION
10.0
Discover catalog for Altivar Soft Starter ATS490
VERSION
1.0
DATE
04 Feb 2025
REVISION
1.0
Discover catalog for Altivar Soft Starter ATS480
VERSION
1.2
DATE
29 Jan 2025
REVISION
1.2
Easy Series Automation and Control Essentials Catalog-2024
VERSION
5.0
DATE
30 Jul 2024
REVISION
5.0
Discover the catalog for Altivar Solar Variable Speed Drives
VERSION
2.0
DATE
19 Jun 2024
REVISION
2.0
Discover catalog for Modicon M221 Programmable logic controller for hardwired architectures
VERSION
9.1
DATE
04 Oct 2023
REVISION
9.1
Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Discover catalog for Altivar 32 Variable Speed Drives
VERSION
4.0
DATE
29 Sep 2023
REVISION
4.0
Catalog: Altivar 61/61 Plus variable speed drives - English version 2014/04 (web pdf format)
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Discover catalogue for Altivar 312 variable speed drives
VERSION
3.0
DATE
29 Sep 2023
REVISION
3.0
Catalog: Soft start/soft stop units Altistart 22
VERSION
2.0
DATE
02 Aug 2022
REVISION
2.0
Instruction sheet - Remote display IP65 - VW3A1007
VERSION
1.1
DATE
09 Apr 2025
REVISION
1.1
Instruction sheet - Remote display IP54 - VW3A1006
VERSION
1.1
DATE
09 Apr 2025
REVISION
1.1
Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications
VERSION
1.0
DATE
05 Mar 2024
REVISION
1.0
Altivar 61 and 71 Fan Kits VZ3V1204, VZ3V1210, and VZ3V1205 Installation Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
Altivar 71W Simplified Manual, 0.75-75 kW (1-100 hp), 380-480 V, IP54 Instruction Bulletin
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
ATV61 and ATV71 Plastic Kits and Power Terminal Kit for Frame Sizes 2 to 5 - Installation Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
Altivar 61 Variable Speed Drive Controllers Simplified Manual, High Horsepower Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
Seismic Qualification of Enclosed Drives and Soft Starters Instruction Bulletin
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
Altistart 22 Soft Starters in Motor Control Centers - Installation Instructions
VERSION
1.1
DATE
21 Feb 2024
REVISION
1.1
Enclosed Altistart 22 Solid State Reduced Voltage Combination Motor Controller Instruction Bulletin
VERSION
1.1
DATE
30 Oct 2023
REVISION
1.1
Instruction Sheet - ATS22 terminal IP65 - VW3G22102
VERSION
1.1
DATE
02 Aug 2022
REVISION
1.1
Instruction sheet - ATS22 terminal IP54 - VW3G22101
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
Frequently Asked Questions
How far can you remote mount the remote HMI or VW3A1101 keypad?
Hide ShowMax. distance that the VW3A1101 can be mounted?
Product Line:
Altivar ATV61 and ATV71 with a VW3A1102 remote mounting kit.
Environment:
All
Cause:
Installation
Resolution:
We offer remote cable options up to 10 meters in length.
Please keep in mind we cannot recommend that the HMI will work with any cable above 10 meters.
We offer 4 cable options:
1 meter VW3A1104R10
3 meter VW3A1104R30
5 meter VW3A1104R50
10 meter VW3A1104R100
If you want to try running a longer cable, you can try using a standard CAT 5 type cable to connect between the remote HMI and the Drive. Some OEMs have ran cables up to 200 feet however they had to add an external power supply to compensate the long cable length ( See the attachment for OEM example of 200 ft cable run). We cannot recommend doing this, but we've been informed that it has been done.
What parts are needed for remote mounting the ATV61/71 VW3A1101 keypad?
Hide ShowPart number required for remote mounting the ATV61/71 with the VW3A1101 keypad.
Product Line:
VW3A1101 keypad for ATV61 ATV71 drives
Environment:
All
Cause:
Installation
Resolution:
The mounting kit, including bezel and hardware is VW3A1102
The Modbus cables to connect the keypad to the control basket of the drive are:
5 Meters - VW3A1104R50
10 Meters - VW3A1104R100
The clear plastic door (IP 65 rating) to cover the keypad when not in use is VW3A1103
What are the part numbers for the RJ45 Modbus cables for Schneider drives and soft starters?
Hide ShowRJ45 Modbus cable part numbers for drives and soft starters.
Product Line:
All drives and soft starters.
Environment:
All
Cause:
Modbus connection cables.
Resolution:
3 meter length cable VW3A8306R30
1 meter length cable VW3A8306R10
0.3 meter length cable VW3A8306R03
NOTE: These cables will not work for connecting a remote mounted keypad for the drives/softstarts.
The best cables for remote keypad connections are:
VW3A1104R10 - 1 meter long
VW3A1104R30 - 3 meters long
VW3A1104R50 - 5 meters long
VW3A1104R100 - 10 meters long
Is the remote graphic keypad display, VW3A1101, compatible with the ATV312 drive?
Hide ShowCan you use VW3A1101 with ATV312 drive?
Product Line:
ATV312
Environment:
All models
Cause:
Display
Resolution:
Yes, the VW3A1101 keypad is compatible with the ATV312 drive. The keypad must have minimum CPU V1.2IE09.
It is not direct connected to the drive. At minimum, an adaptor and a cable are required:
VW3A1105 is a female-female adaptor between cable and keypad
VW3A1104R10 is a 1meter cable
VW3A1104R30 is a 3meter cable
VW3A1104R50 is a 5meter cable
VW3A1104R100 is a 10meter cable
An optional remote mount kit, VW3A1102, will include the VW3A1105 adaptor.
An optional door, VW3A1103, adds to the remote mount kit to increase IP54 rating to IP65.
What is the part number for the remote keypad for the ATV32 variable speed drive?
Hide ShowPart number for the remote keypad of ATV32 drive.
Product Line:
ATV32
Environment:
All
Cause:
Product Selection
Resolution:
There are three keypad options for the ATV32 drives.
Option 1
VW3A1101 is an LCD keypad display.
VW3A1102 is the remote mounting kit with bezel providing IP54 rating.
VW3A1103 is an optional clear door providing IP65 rating and tamper resistance.
A cable is offered in several lengths:
VW3A1104R10 for a 1 meter cable.
VW3A1104R30 for a 3 meter cable.
VW3A1104R50 for a 5 meter cable.
VW3A1104R100 for a 10 meter cable.
Option 2:
VW3A1006 is a 4 digit LED keypad display rated IP54.
Use a cable from option 1 above.
Option 3
VW3A1007 is a 4 digit LED keypad display rated IP65.
Use a cable from option 1 above.
Is the remote keypad cable a straight through CAT5 cable, referenced in part numbers VW3A1104R10 through R100?
Hide ShowRemote keypad cable a straight through CAT5 cable, referenced in part numbers VW3A1104R10 through R100
Product Line:
ATV61 ATV71
Environment:
All models and serial numbers
Cause:
None
Resolution:
Yes, the VW3A1104R10 through R100 is a straight through CAT 5 cable.
What is the cable for remote mounting the ATV61 displays?
Hide ShowTrying to find the part number for the RJ45 cable to connect to the remote display, VW3A1101.
Product line:
VW3A1101
Environment:
All products of VW3A1101
Cause:
N/A
Resolution:
We offer the cables in multiple lengths
VW3A1104R10 - 1 meter
VW3A1104R20 - 3 meters
VW3A1104R50 - 5 meters
VW3A1104R100 - 10 meters
