Altistart 01, Soft starter for asynchronous motor, ATS01, 9 A-380..415 V-4 KW

Home ProductsIndustrialAltistartSoft starter for asynchronous motor

Altistart 01, Soft starter for asynchronous motor, ATS01, 9 A-380..415 V-4 KW

Item Number: ATS01N209QN

Datasheet

Product Dimensions

Width icon

Width45 mm

Height icon

Height124 mm

Depth icon

Depth131 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altistart 01

Product or component type

soft starter

Product destination

asynchronous motors

Warranty

18 months

Physical

Function available

integrated bypass

Marking

CE

Height

124 mm

Width

45 mm

Depth

131 mm

Net weight

0.42 kg

Standards

EN/IEC 60947-4-2

Product certifications

GOST|CCC|CSA|C-Tick|UL

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation or dripping water conforming to EN/IEC 60068...2-3

Ambient air temperature for operation

-10...40 °C (without derating)|40...50 °C (with current derating of 2 % per °C)

Ambient air temperature for storage

-25...70 °C conforming to EN/IEC 60947...4-2

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand Labelling

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

14

Package 3 bare product quantity

112

Product specific application

simple machine

Device short name

ATS01

Network number of phases

3 phases

[us] rated supply voltage

380...415 V - 10...10 %

Motor power kw

4 kW, 3 phases at 380...415 V

Icl starter rating

9 A

Utilisation category

AC-53B conforming to EN/IEC 60947-4-2

Current consumption

45 A at nominal load

Type of start

start with voltage ramp

Power dissipation in w

4 W at full load and at end of starting|94 W in transient state

Assembly style

with heat sink

Supply voltage limits

342...456 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Output voltage

<= power supply voltage

[uc] control circuit voltage

built into the starter

Starting time

1 s / 100 |5 s / 20 |10 s / 10 |adjustable from 1 to 10 s

Deceleration time symb

adjustable from 1 to 10 s

Starting torque

30...80 % of starting torque of motor connected directly on the line supply

Discrete input type

logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm

Discrete input voltage

24...40 V

Discrete input logic

positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA

Discrete output current

2 A DC-13|3 A AC-15

Discrete output type

open collector logic LO1 end of starting signal|relay outputs R1A, R1C NO

Discrete output voltage

24 V (voltage limits: 6...30 V) open collector logic

Minimum switching current

10 mA at 6 V DC for relay outputs

Maximum switching current

relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load|relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load

Display type

1 LED (green) for starter powered up|1 LED (yellow) for nominal voltage reached

Tightening torque

0.5...0.5 N.m|1.9...2.5 N.m

Electrical connection

4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit|screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit|4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit|screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit|screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit|4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit|screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit|4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit|4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit|screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit

Operating position

vertical +/- 10 degree

Compatibility code

ATS01N2

Power range

4...6 kW at 380...440 V 3 phases

Motor starter type

soft starter

Electromagnetic compatibility

conducted and radiated emissions level B conforming to CISPR 11|conducted and radiated emissions level B conforming to IEC 60947-4-2|damped oscillating waves level 3 conforming to IEC 61000-4-12|electrostatic discharge level 3 conforming to IEC 61000-4-2|EMC immunity level 3 conforming to EN 50082-1|EMC immunity level B conforming to EN 50082-2|harmonics level 3 conforming to IEC 1000-3-2|harmonics level 3 conforming to IEC 1000-3-4|immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6|immunity to electrical transients level 4 conforming to IEC 61000-4-4|immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3|micro-cuts and voltage fluctuation conforming to IEC 61000-4-11|voltage/current impulse level 3 conforming to IEC 61000-4-5

Pollution degree

2 conforming to EN/IEC 60947-4-2

Vibration resistance

1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|> 1000 m with current derating of 2.2 % per additional 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.300 cm

Package 1 width

15.200 cm

Package 1 length

17.300 cm

Package 1 weight

526.000 g

Unit type of package 2

S03

Number of units in package 2

14

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.053 kg

Unit type of package 3

P06

Number of units in package 3

112

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

74.124 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

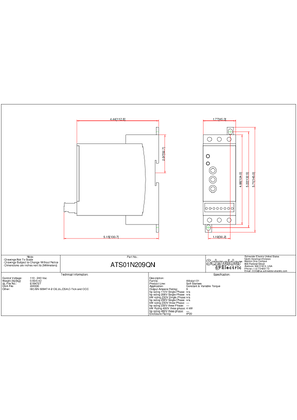

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

Frequently Asked Questions

hide show

How can ATS01N2...LU, QN, RT be started without external control wires?

Issue:
Start ATS01N2...LU, QN, RT without control wires.

Product Line:
Altistart 01 Soft Starters with "LU", "QN", or "RT" at the end of the part number

Environment:
All

Cause:
Need to start the Soft Starter with power up

Resolution:
Add a jumper between terminals LI+ and LI2.  This provides a continuous RUN command.  When power is supplied to the ATS01, it will immediately begin to start the motor.  Removing power will result in a freewheel stop.
