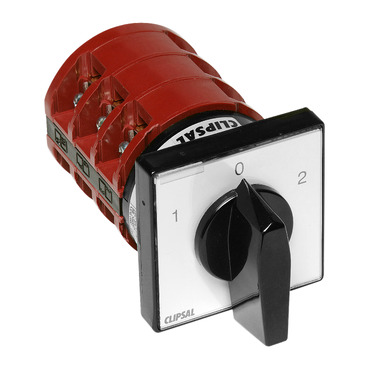

7 Series Cam Switches Changeover Switch 3 Pole, , with Off Marked 1-O-2

Item Number: 7GN63/53/U

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318794050721	-

Specifications

Design

Product brand	Clipsal
Range of product	Series 7

Physical

Switch function	3-way
Connector type	screw terminals
Number of poles	3

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Electrical circuit type	changeover contactor
Mounting holes diameter	14 mm
[us] rated supply voltage	415 V AC
Number of contacts	3
[ith] conventional free air thermal current	63 A
Rated operational power in w	30 kW
Switching angle	60 °
Fuse type	10-10 kA, gG 10-10 kA, gL
Maximum short-circuit current	63 A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.2 cm
Package 1 width	7.2 cm
Package 1 length	14.3 cm
Package 1 weight	386.0 g
Sustainable packaging	No
End of life manual availability	N/A
Warranty (in months)	18
