Clipsal - 56 Series Switched Socket Outlet 250V, 20A, 3 Round PIN, IP66, 1 Pole

Home ProductsIndustrial56 SeriesSwitched Socket Outlet

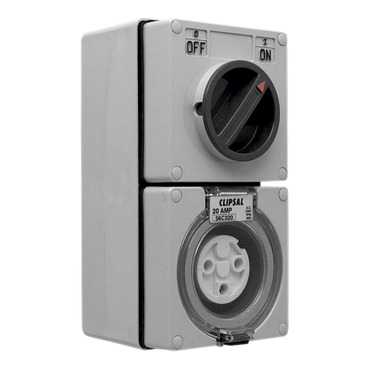

Clipsal - 56 Series Switched Socket Outlet 250V, 20A, 3 Round PIN, IP66, 1 Pole | Chemical Resistant Grey

Item Number: 56C320-CG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth108 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

  • small commercial
  • industry
  • utility

Physical

Number of poles

3

Number of power socket outlets

1 protective cover

[in] rated current

20 A

[ue] rated operational voltage

250 V AC 50 Hz

Protection type

without protection

Device mounting

surface

Connections - terminals

screw terminals cable(s) 2.5-6 mm²

Depth

108 mm

Width

101 mm

Height

204 mm

Standards

  • AS/NZS 3123
  • AS/NZS 3133

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

ABS (acrylonitrile butadiene-styrene): cover

Contacts material

pins: phosphor bronze

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Weee label

N/A

Weee applicability

Finished product

Outside of Europe

Average percentage of recycled plastic content

0 %

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Number of modules

1

Poles description

1P + N + E

Electrical connection

industrial connector

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.2 cm

Package 1 width

10.5 cm

Package 1 length

20.5 cm

Package 1 weight

997.0 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

21.0 cm

Package 2 width

34.8 cm

Package 2 length

44.5 cm

Package 2 weight

12.504 kg

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

Take-back

No

Warranty (in months)

18
