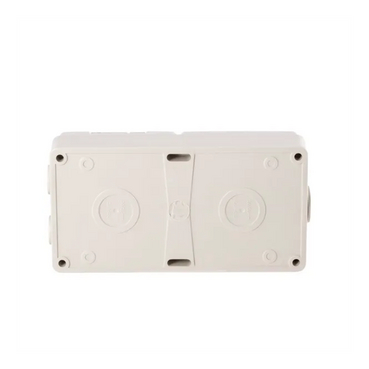

Clipsal - 56 Series Switched Socket Outlet 250V, 10A, 3 Flat Pin | Chemical Resistant Grey

Item Number: 56C310-CG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height204 mm

Depth icon

Depth83 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

  • small commercial
  • utility
  • industry

Physical

Number of poles

3

Number of power socket outlets

1 protective cover

[in] rated current

10 A

[ue] rated operational voltage

250 V AC 50 Hz

Protection type

without protection

Device mounting

surface

Connections - terminals

screw terminals cable(s) 1.5-6 mm²

Depth

83 mm

Width

101 mm

Height

204 mm

Standards

  • AS/NZS 3133
  • AS/NZS 3123

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2407007EN

Circularity profile

N/A

Material

Material

ABS (acrylonitrile butadiene-styrene): cover

Contacts material

pins: phosphor bronze

Others

Commercial status history

  • SESA65076
  • Tue Aug 13 22:52:00 EDT 2024
  • From Unitary Local
  • From 20 to 08

Package 1 bare product quantity

1

Plug, socket category

low voltage

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Number of modules

1

Poles description

1P + N + E

Electrical connection

industrial connector

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.85 cm

Package 1 width

10.35 cm

Package 1 length

20.65 cm

Package 1 weight

720.0 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

21.4 cm

Package 2 width

29.7 cm

Package 2 length

42.9 cm

Package 2 weight

9.276 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.8834713950270532

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Frequently Asked Questions

Do you do the 56C310D with a shallow box

Hide Show

No, unfortunately this is not a standard part that we stock, however you can purchase the switched outlet less enclosure (56C310DLE) and the shallow enclosure (56ES2) and assemble it yourself.


For further information please visit http://www.clipsal.com/Trade/search-results?q=56C310D
