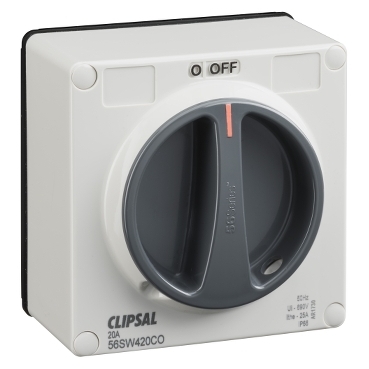

Clipsal - 56 Series, Surface Switch, 4P 20A C/Over Less Enclosure (With 7 Series Mechanism)

Clipsal - 56 Series, Surface Switch, 4P 20A C/Over Less Enclosure (With 7 Series Mechanism) GY

Item Number: 56SW420COLE-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth119 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

industry|small commercial|utility

Physical

Device presentation

basic element with full cover plate

Control type

rotary knob

Number of poles

4

Device mounting

surface

Local signalling

without

[ue] rated operational voltage

500 V AC 50 Hz

Rated current

20 A

Height

107 mm

Width

101 mm

Depth

119 mm

Net weight

0.001 kg

Switch function

4-pole

Ambient air temperature for operation

-25...75 °C

Ip degree of protection

IP66 conforming to AS 60529

Standards

AS/NZS 3133

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Handle colour

grey

Suitability for isolation

yes

Poles description

4P

[icm] rated short-circuit making capacity

1.7 kA

Tightening torque

0.8 N.m

Marking location

marking on surface

Breaking capacity

20 kA

Targeted country

Australia

[uimp] rated impulse withstand voltage

4 kV

[icw] rated short-time withstand current

0.8 kA for 1 s

Rotary handle padlocking

2 padlocks 8-8 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.001 kg
