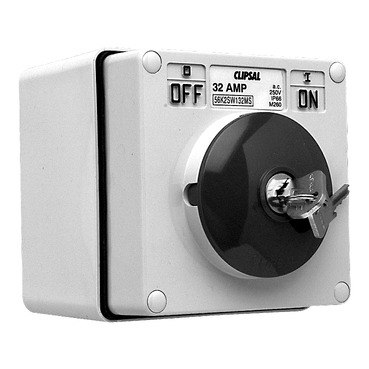

Clipsal - 56 Series Surface Switch 1 Pole, 250VAC, 32A, Key Operated, On/Off Locking Position | Grey

Item Number: 56K2SW132MS-GY

Grey 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height107 mm

Depth112 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554275730	GY
12	CAR	29311554275734	GY

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	switch
Device application	control
Colour	cover: grey
Market segment	small commercial industry utility

Physical

Device presentation	basic element with full cover plate
Control type	rotary knob
Number of poles	1
Device mounting	surface
Local signalling	without
[ue] rated operational voltage	250 V AC 50 Hz
Rated current	32 A
Marking	ON-OFF
Fixing mode	by screws
Height	107 mm
Width	101 mm
Depth	112 mm
Net weight	0.554 kg
Actuator	key
Switch function	1-pole
Ambient air temperature for operation	-25...75 °C
Ip degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3133
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Handle colour	grey
Suitability for isolation	yes
Poles description	1P
[icm] rated short-circuit making capacity	1 kA
Tightening torque	0.8 N.m
Marking location	marking on surface
Breaking capacity	32 kA
Targeted country	Australia
Motor m-rating as3133	M250 at 250 V
[uimp] rated impulse withstand voltage	4 kV
[icw] rated short-time withstand current	1.2 kA for 1 s
Rotary handle padlocking	2 padlocks 8-8 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.25 cm
Package 1 width	11.25 cm
Package 1 length	10.65 cm
Package 1 weight	0.554 kg
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	25.0 cm
Package 2 width	21.4 cm
Package 2 length	33.8 cm
Package 2 weight	6.648 kg
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.962153883324494
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.16611075410636672
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.10168870165739638
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	2.9177173333333326
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.3580402754546748
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Total lifecycle carbon footprint	7.505710947876265
End of life manual availability	N/A
Warranty (in months)	18
