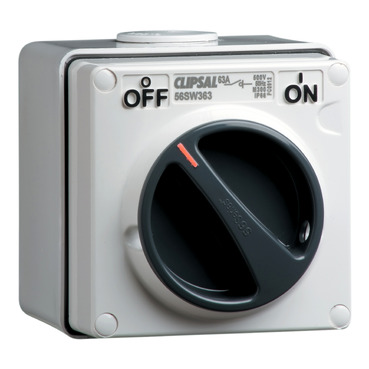

Clipsal - 56 Series Surface Switch 1 Gang, 3 Pole, 500VAC, 63A | Woolworths Grey

Item Number: 56SW363-WW

Chemical Resistant Grey 1 PCE 0
Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0
Chemical Resistant White 1 PCE 0
Chemical Resistant Yellow 1 PCE 0
Woolworths Grey 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width101 mm

Height107 mm

Depth108 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554311919	CG
12	CAR	29311554311913	CG
1	PCE	9311554203948	GY
12	CAR	29311554203942	GY
1	PCE	9311554239657	RO
12	CAR	29311554239651	RO
1	PCE	9311554333447	RW
12	CAR	29311554333441	RW
1	PCE	9311554100834	RY
12	CAR	29311554100838	RY
1	PCE	9311554723538	WW
24	CAR	19311554723535	WW

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	switch
Device application	control
Market segment	utility small commercial industry

Physical

Device presentation	basic element with full cover plate
Control type	rotary knob
Number of poles	3
Device mounting	surface
Local signalling	without
[ue] rated operational voltage	500 V AC 50 Hz
Rated current	63 A
Marking	ON-OFF
Fixing mode	by screws
Height	107 mm
Width	101 mm
Depth	108 mm
Net weight	0.62 kg
Switch function	3-pole
Ambient air temperature for operation	-25...75 °C
Standards	AS/NZS 3133
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
	Outside of Europe
Suitability for isolation	yes
Poles description	3P
[icm] rated short-circuit making capacity	2.1 kA
Tightening torque	0.8 N.m
Marking location	marking on surface
Breaking capacity	63 kA
Targeted country	Australia
Motor m-rating as3133	M300 at 500 V
[uimp] rated impulse withstand voltage	4 kV
[icw] rated short-time withstand current	1.5 kA for 1 s
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.25 cm
Package 1 width	11.25 cm
Package 1 length	10.65 cm
Package 1 weight	0.68 kg
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	25.0 cm
Package 2 width	21.4 cm
Package 2 length	33.8 cm
Package 2 weight	8.16 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	40 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.6358567520950467
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.20389045630384361
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.12481645690799555
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	33.927012
Carbon footprint of the use phase [b2, b3, b4, b6]	34 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.6669086413523082
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	39.55848430665919
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
