Specifications
Design
Range

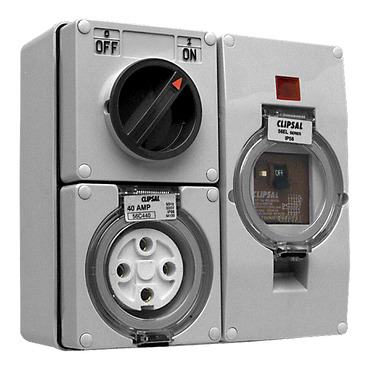

Clipsal - 56 Series
Product or component type
socket-outlet with residual current device
Device application
power supply
Market segment
- industry
- utility
- small commercial
Physical
Control type
push-button
[in] rated current
40 A
[ue] rated operational voltage
500 V AC 50 Hz
Number of gangs
4 gangs
Installation direction
vertical
Connections - terminals
screw terminal cable(s) 10-16 mm²
Mounting mode
surface mounted
Depth
135 mm
Width
204 mm
Height
204 mm
Net weight
2.226 kg
Ambient air temperature for operation
-25...75 °C
Ip degree of protection
IP66
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Network number of phases
3 phases
Targeted country
Australia
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
20.4 cm
Package 1 width
20.4 cm
Package 1 length
13.5 cm
Package 1 weight
0.001 kg
Sustainable packaging
No
Warranty (in months)
18
