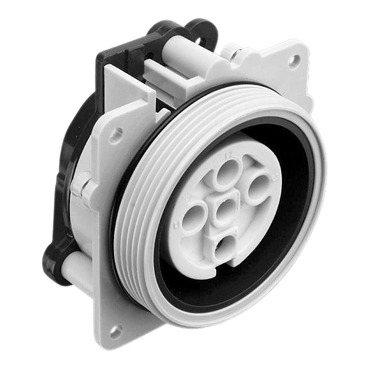

Clipsal - 56 Series Socket Outlet Internal Socket Housing, 500V, 10A

Qty	UoM	EAN	Colour
1	PCE	9311554238780	-
30	CAR	19311554117198	-

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	socket-outlet
Device application	power supply
Market segment	small commercial utility industry

Physical

Device mounting	surface
[in] rated current	10 A
[ue] rated operational voltage	500 V AC 50 Hz conforming to EN 60309-2
Connections - terminals	screw terminals 1.5-6 mm² rigid or stranded cable
Socket number	1
Outlet standard	industrial
Net weight	0.001 kg
Ambient air temperature for operation	-25...75 °C
Standards	AS/NZS 3112
Rohs exemption information	Yes
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: cover
Contacts material	screws: brass

Others

Legacy weee scope	In
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Package 1 bare product quantity	1
Outlet standard deviation	Australian/New Zealand
Plug, socket category	low voltage
Poles description	3P + N + E
Voltage colour	black
Duration	7 h
Tightening torque	0.8 N.m
Socket-outlet type	Q
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	0.001 kg
Sustainable packaging	No
Warranty (in months)	18
