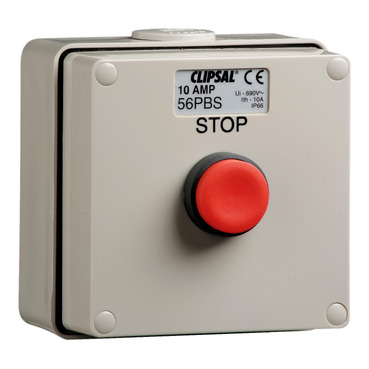

Clipsal - 56 Series, Push Button Control Station, IP66, 250V 3A - Stop Control Station Grey
Item Number: 56PBS-GY
Specifications
Design
Range of product
Series 56
Range
Clipsal - 56 Series
Product brand
Clipsal
Product or component type
switch
Device application
control
Colour
cover: grey
Market segment
small commercial|industry|utility
Physical
[in] rated current
10 A
Control type
push-button
Connections - terminals
screw terminal cable(s) 1-4 mm² solid
Width
101 mm
Height
107 mm
Depth
80 mm
Net weight
0.34 kg
Marking
STOP
Ip degree of protection
IP66
Ambient air temperature for operation
-25...75 °C
Ip degree of protection
IP66 conforming to AS 60529
Standards
AS/NZS 3100|AS/NZS 3133
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
[us] rated supply voltage
lamp: 500 V AC 50 Hz
Poles description
1P
Suitability for isolation
no
Tightening torque
0.8 N.m
Cap/operator or lens colour
red
Targeted country
Australia
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.7 cm
Package 1 width
10.3 cm
Package 1 length
10.9 cm
Package 1 weight
338.5 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
CAD Files and Packs
-

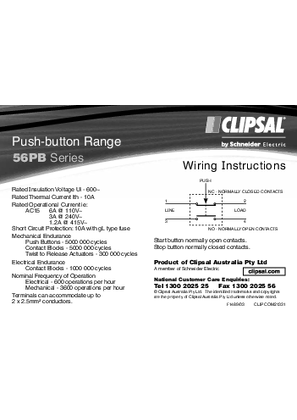

Installation Instruction
-
