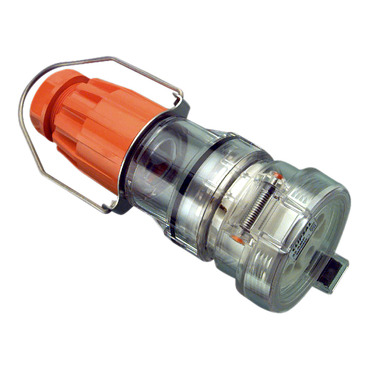

Clipsal - 56 Series, Pendant Outlet, IP66, 500V 32A - 4 Round Pins

Clipsal - 56 Series, Pendant Outlet, IP66, 500V 32A - 4 Round Pins Electric Orange

Item Number: 56PO432-EO

Datasheet

Product Dimensions

Width icon

Width90 mm

Height icon

Height90 mm

Depth icon

Depth263 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

pendant outlet

Device application

power supply

Market segment

small commercial|industry|utility

Sustainable offer status

Green Premium product

Physical

Mounting mode

external mounting

Mounting support

pendant

[in] rated current

32 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 2.5-25 mm²

Socket number

1

Outlet standard

industrial

Cable outer diameter

9...29 mm

Cable entry

cable gland

Net weight

0.47 kg

Depth

263 mm

Width

90 mm

Height

90 mm

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3120

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

polycarbonate: housing

Contacts material

sleeves: brass

Others

Commercial status history

SESA301466 | Thu Aug 10 18:38:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Plug, socket category

low voltage

Plug, socket, control station shape

straight

Poles description

3P + E

Voltage colour

black

Duration

7 h

Socket-outlet type

N

Thread type

M40

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.6 cm

Package 1 width

9.4 cm

Package 1 length

20.0 cm

Package 1 weight

460.0 g
