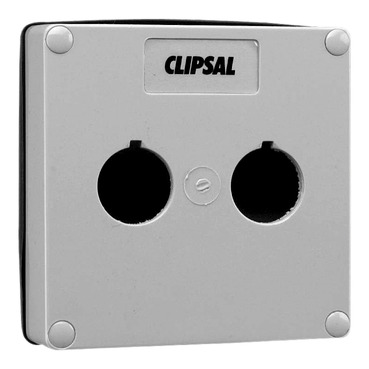

Clipsal - 56 Series Lid 1 Gang with 2 X 30mm Diameter Apertures. Made of Plastic & Includes Gasket | Grey
Item Number: 56L1/30/2-GY
Specifications
Design
| Range | Clipsal - 56 Series |
|---|---|
| Range of product | Series 56 |
| Product brand | Clipsal |
| Product or component type | enclosure lid |
| Colour | grey (RAL 7035) |
Physical
| Device mounting | surface |
|---|---|
| Mounting mode | wall-mounted |
| Width | 95 mm |
| Height | 95 mm |
| Depth | 28 mm |
| Net weight | 0.09 kg |
| Standards | AS 3100 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: housing |
|---|
