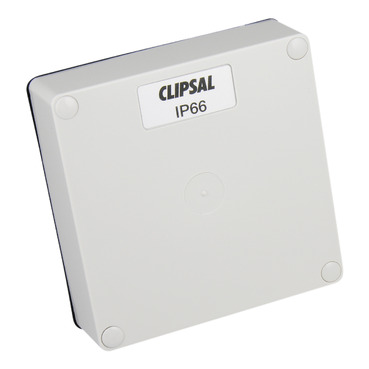

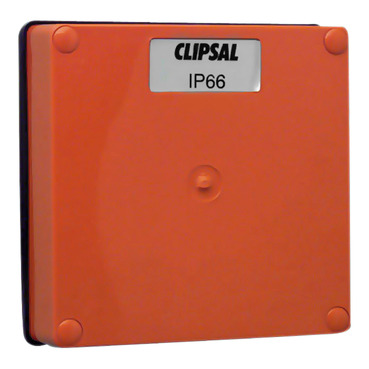

Clipsal - 56 Series Lid 1 Gang, Made of Plastic & Includes Gasket | Chemical Resistant White

Item Number: 56L1-RW

Chemical Resistant Grey 1 PCE 0
Woolworths Grey 1 PCE 0
Grey 1 PCE 0
Chemical Resistant Orange 1 PCE 0
Chemical Resistant White 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height95 mm

Depth28 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554311704	CG
2	CRT	9311554337407	CG
90	CAR	19311554337404	CG
1	PCE	9311554071189	GY
2	CRT	9311554203368	GY
90	CAR	19311554115743	GY
1	PCE	9311554071196	RO
2	CRT	9311554237264	RO
90	CAR	19311554115736	RO
1	PCE	9311554357603	RW
2	CRT	9311554341473	RW
90	CAR	19311554357600	RW
1	PCE	9311554723422	WW
2	CRT	9311554723439	WW
90	CAR	19311554723429	WW

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	enclosure lid
Colour	chemical grey

Physical

Device mounting	surface
Mounting mode	wall-mounted
Width	95 mm
Height	95 mm
Depth	28 mm
Net weight	0.1 kg
Standards	AS 3100
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511029_V1-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene): housing

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Compatibility code	56 Series covers
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.5 cm
Package 1 width	9.5 cm
Package 1 length	9.5 cm
Package 1 weight	92 g
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4930164005010552
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.013221845530375535
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.01885383159640327
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4007331367058578
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.05909095175339727
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.9849161660870891
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	ENVEOLI2511029EN
Take-back	No
Warranty (in months)	18
