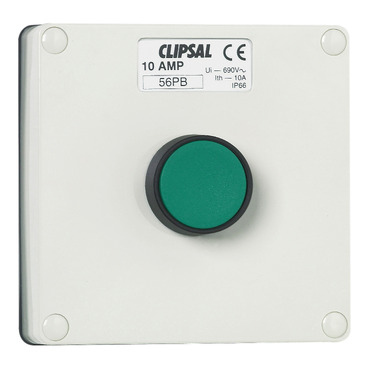

Clipsal - 56 Series Control Station IP66 1Xstart Less Enclosure | Grey

Name: Grey | Clipsal - 56 Series Control Station IP66 1Xstart Less Enclosure
Brand: Clipsal
SKU: 56PBLE-GY
Availability: InStoreOnly

Width101 mm

Height107 mm

Depth59 mm

Qty	UoM	EAN	Colour
1	PCE	9311554237677	GY
24	CAR	29311554195452	GY

Specifications

Design

Range of product	Series 56
Range	Clipsal - 56 Series
Product brand	Clipsal
Product or component type	switch
Device application	control
Colour	cover: grey
Market segment	utility industry small commercial

Physical

[in] rated current	10 A
Control type	push-button
Connections - terminals	screw terminal cable(s) 1-4 mm² solid
Width	101 mm
Height	107 mm
Depth	59 mm
Net weight	0.179 kg
Marking	START
Ip degree of protection	IP66
Ambient air temperature for operation	-25...75 °C
Ip degree of protection	IP66 conforming to AS 60529
Standards	AS/NZS 3100 AS/NZS 3133
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
[us] rated supply voltage	lamp: 500 V AC 50 Hz
Poles description	1P
Suitability for isolation	no
Tightening torque	0.8 N.m
Cap/operator or lens colour	green
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.5 cm
Package 1 width	10.0 cm
Package 1 length	10.5 cm
Package 1 weight	167.0 g
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8929236435292246
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05007309735697336
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.030653453387698905
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5698666666666666
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.4093731516262286
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Total lifecycle carbon footprint	1.9528900125667923
Packaging made with recycled cardboard	Yes
End of life manual availability	N/A
Warranty (in months)	18
