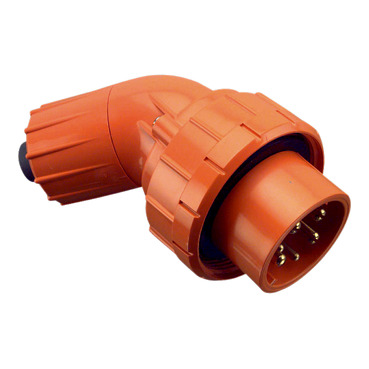

Clipsal - 56 Series, Angled Plug, IP66, 500V 10A - 6 Round Pins

Clipsal - 56 Series, Angled Plug, IP66, 500V 10A - 6 Round Pins Electric Orange

Item Number: 56PA610-EO

Datasheet

Product Dimensions

Width icon

Width126.5 mm

Height icon

Height78 mm

Depth icon

Depth158 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

plug

Device application

power supply

Colour

orange (RAL 2004)

Market segment

industry|utility|small commercial

Sustainable offer status

Green Premium product

Physical

[in] rated current

10 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Outlet standard

industrial

Connections - terminals

screw terminal 1-6 mm²

Wire stripping length

12 mm|45 mm

Cable entry

cable gland

Net weight

0.347 kg

Height

78 mm

Width

126.5 mm

Depth

158 mm

Standards

AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

plastic

Material

polycarbonate: housing

Contacts material

pins: brass

Others

Commercial status history

SESA301466 | Thu Aug 10 18:38:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Poles description

3P + N + E

Voltage colour

black

Plug, socket category

low voltage

Thread type

M25

Plug, socket, control station shape

angled

Pin arrangement

V

Duration

7 h

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.0 cm

Package 1 width

10.0 cm

Package 1 length

17.4 cm

Package 1 weight

334.0 g
