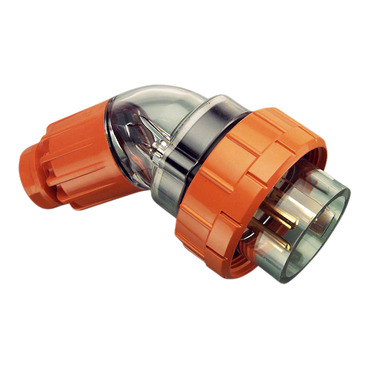

Clipsal - 56 Series Angled Plug IP66, 250V 20A - 3 Round Pins | Electric Orange

Item Number: 56PA320-EO

Electric Orange 1 PCE 0
Chemical Resistant Orange 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width126.5 mm

Height78 mm

Depth158 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554203399	EO
24	CAR	29311554115818	EO
1	PCE	9311554237370	RO
24	CAR	29311554164489	RO

Specifications

Design

Range	Clipsal - 56 Series
Range of product	Series 56
Product brand	Clipsal
Product or component type	plug
Device application	power supply
Colour	orange (RAL 2004)
Market segment	industry small commercial utility

Physical

[in] rated current	20 A
[ue] rated operational voltage	250 V AC 50 Hz conforming to EN 60309-2
Outlet standard	industrial
Connections - terminals	screw terminal 1-6 mm²
Wire stripping length	45 mm 12 mm
Cable entry	cable gland
Net weight	0.32 kg
Height	78 mm
Width	126.5 mm
Depth	158 mm
Standards	AS/NZS 3123
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic
Material	polycarbonate: housing
Contacts material	pins: brass

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	24
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Poles description	1P + N + E
Voltage colour	blue
Plug, socket category	low voltage
Thread type	M25
Plug, socket, control station shape	angled
Pin arrangement	H
Duration	6 h
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.500 cm
Package 1 width	10.000 cm
Package 1 length	18.000 cm
Package 1 weight	313.000 g
Unit type of package 2	S04
Number of units in package 2	24
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	8.050 kg
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.6357905393126129
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.11371463947215737
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.001176002731544733
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.675871939628549
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.435194452702029
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
