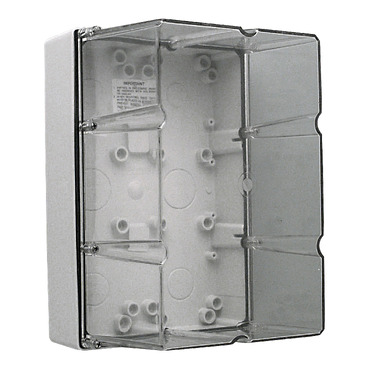

Clipsal - 56 Series, Adaptable Enclosure, Deep, 6 Gang, 184x198x294mm Grey
Item Number: 56XDB6-GY
Specifications
Design
Range of product
Series 56
Range
Clipsal - 56 Series
Product brand
Clipsal
Colour
grey (RAL 7035)
Physical
Number of gangs
6 gangs
Mounting mode
wall-mounted
Fixing mode
by screws
Length
184 mm
Width
198 mm
Depth
184 mm
Height
294 mm
Net weight
2.2 kg
Ip degree of protection
IP66 conforming to AS 60529
Standards
AS 3100
Ambient air temperature for operation
-25...75 °C
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PVC (polyvinyl chloride): housing
Others
Package 1 bare product quantity
1
Cover type
transparent
Shape
rectangular
Number of mounting holes
24
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
29.4 cm
Package 1 width
19.8 cm
Package 1 length
18.4 cm
Package 1 weight
2.2 kg
