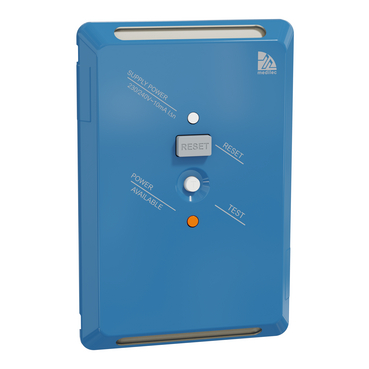

Medilec RCD plate 10mA, 20A, vertical/horizontal, antibacterial | White Electric

Item Number: MLP3031RCD10A-WE

White Electric 1 PCE 0
Dark Blue 1 PCE 0
Red 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width78.2 mm

Height116 mm

Embedding depth34.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487458104	WE
32	CAR	13606487458101	WE
1	PCE	3606487423928	DB
32	CAR	13606487423925	DB
1	PCE	3606487423911	RD
32	CAR	13606487423918	RD

Specifications

Design

Range of product	Medilec
Range	Medilec
Product or component type	RCD plate
Product brand	Clipsal
Device application	residual current device
Colour tint	white
Surface treatment	antibacterial

Physical

[in] rated current	20 A
[ue] rated operational voltage	230...240 V AC
Protection type	MCB
Local signalling	LED
Installation direction	horizontal/vertical
Mounting mode	wall-mounted
Mounting support	screw fixing
Height	116 mm
Width	78.2 mm
Depth	43.6 mm
Net weight	155 g
Embedding depth	34.6 mm
Connections - terminals	screw terminal - 4 x 2.5 mm² screw terminal - 3 x 4 mm²
Standards	AS/NZS 3190 AS/NZS 3100 ISO 22196
Product certifications	RCM
Ip degree of protection	IP20
Relative humidity	10...95 %
Ambient air temperature for operation	0...45 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2412003_V1-EN
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene)

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	1536
Package 2 bare product quantity	32
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Poles description	2P
Network type	AC
Earth-leakage sensitivity	10 mA
Earth-leakage protection class	type I type A
Rated conditional short-circuit current	3 kA
Network frequency	50 Hz
Size	84 mm
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.1 cm
Package 1 width	8.1 cm
Package 1 length	12.6 cm
Package 1 weight	180 g
Unit type of package 2	CAR
Number of units in package 2	32
Package 2 height	22.4 cm
Package 2 width	26.1 cm
Package 2 length	33.5 cm
Package 2 weight	5.5 kg
Unit type of package 3	PAL
Number of units in package 3	1536
Package 3 height	95 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	284.1 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	181 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.720025536606433
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7922656144209426
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.001608800586181442
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	178.01272937282204
Carbon footprint of the use phase [b2, b3, b4, b6]	178 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3871707344255424
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	180.91380005886114
Average percentage of recycled metal content	0 %
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2412003EN
Take-back	No
Warranty (in months)	18
