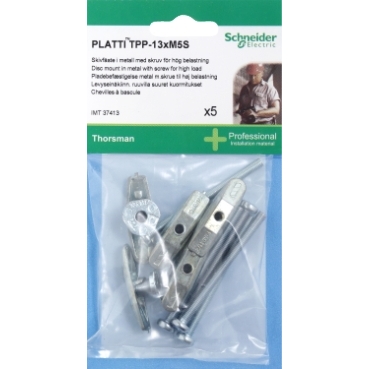

Thorsman, cavity fixing, withs crew, TPP-13xM5S, set of 5, DIY

Thorsman, cavity fixing, withs crew, TPP-13xM5S, set of 5, DIY

Item Number: IMT37413

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Sustainable offer status

Green Premium product

Physical

Provided equipment

screw

Mounting support

board material - thickness: 10-35 mm

Quantity per set

set of 5

Net weight

0.0203 kg

Type of packing

plastic bag and cardboard with eurohole

Ambient air temperature for operation

-20...80 °C

Length

90 mm

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP101028EN

Circularity profile

N/A

Material

Material

screw: steel electroplated|toggle: zinc|collar: zinc|spring: steel

Others

Package 1 bare product quantity

1

Device short name

TPP

Thread type

M5

Screw diameter

5 mm

Screw length

65 mm

Drilling diameter

13 mm

Practical load capacity

shear: 50 kg for 13 mm board 2.5 )|pull-out load: 17 kg for 13 mm board 3 )|shear: 80 kg for 2 x 13 mm board 2.5 )|pull-out load: 34 kg for 2 x 13 mm board 3 )

Thickness

0...47 mm fixture 13 mm board|0...34 mm fixture 2 x 13 mm board

Diameter

18 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.5 cm

Package 1 width

1.5 cm

Package 1 length

9.3 cm

Package 1 weight

109 g

Unit type of package 2

CAR

Number of units in package 2

5

Package 2 height

2.5 cm

Package 2 width

20 cm

Package 2 length

35 cm

Package 2 weight

545 g

Unit type of package 3

S02

Number of units in package 3

60

Package 3 height

15 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

6.54 kg
