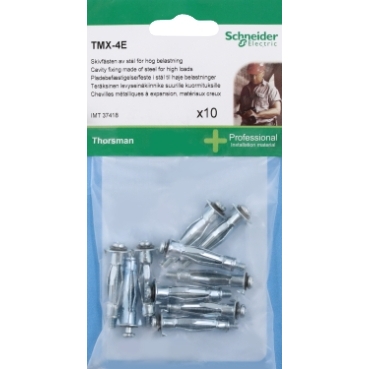

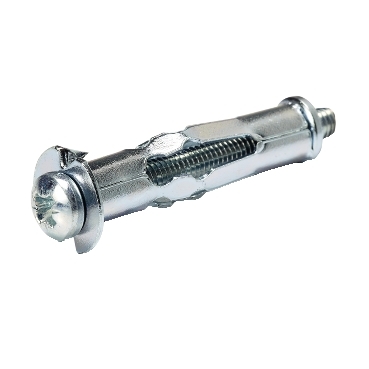

Thorsman cavity fixing with threaded screw, TMX-4E, set of 10, DIY

Home ProductsElectrical AccessoriesThorsmancavity fixing

Thorsman cavity fixing with threaded screw, TMX-4E, set of 10, DIY

Item Number: IMT37418

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Physical

Provided equipment

threaded screw

Mounting support

high load installation in board material - thickness: 5-15 mm

Screwdriver shape

Philips

Quantity per set

set of 10

Net weight

0.0072 kg

Environmental characteristic

fire resistance

Type of packing

plastic bag and cardboard with eurohole

Ambient air temperature for operation

-40...80 °C

Length

47 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111114EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

  • screw: steel electroplated
  • cavity fixing: sheet metal electroplated

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Weee label

No

Device short name

TMX

Thread type

M4

Screw diameter

4 mm

Screw length

40 mm

Shape of screw head

  • combi-head
  • cross slotted

Drilling diameter

8 mm

Practical load capacity

  • shear: 20 kg 2.5 )
  • pull-out load: 14 kg 3 )

Thickness

0...18 mm

Diameter

14 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.4 cm

Package 1 width

1.4 cm

Package 1 length

4.7 cm

Package 1 weight

7.0 g

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
