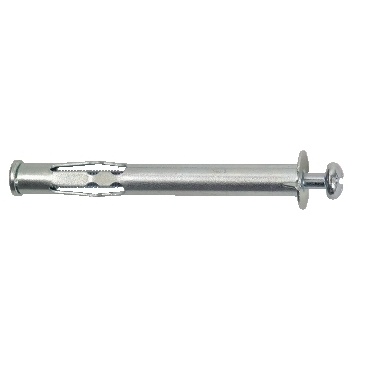

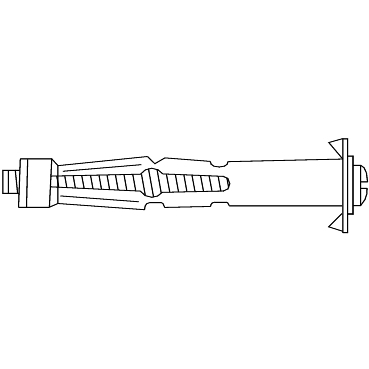

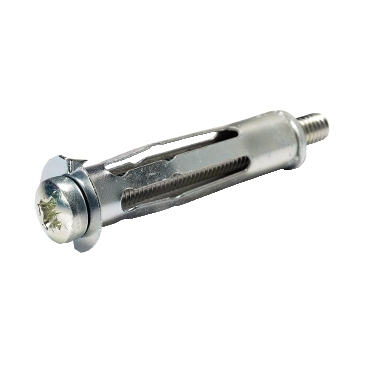

Thorsman, Cavity Fixing, TMX-12xM6, with threaded screw, set of 50

Thorsman, Cavity Fixing, TMX-12xM6, with threaded screw, set of 50

Item Number: 1260140

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Thorsman

Product or component type

cavity fixing

Device application

3-16 mm high load installation in board material

Colour tint

<ul><li>metal</li><li>grey</li></ul>

Warranty

18 months

Physical

Provided equipment

threaded screw

Mounting support

high load installation in board material - thickness: 3-16 mm

Mounting support

wall mounted

Screwdriver shape

Philips

Quantity per set

set of 50

Net weight

0.0212 kg

Environmental characteristic

fire resistance

Ambient air temperature for operation

-40...80 °C

Length

62 mm

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP101027EN

Circularity profile

N/A

Material

Material

<ul><li>screw: steel electroplated</li><li>cavity fixing: sheet metal electroplated</li></ul>

Others

Package 1 bare product quantity

1

Device short name

TMX

Thread type

M6

Screw diameter

6 mm

Screw length

57 mm

Shape of screw head

<ul><li>cross slotted</li><li>combi-head</li></ul>

Drilling diameter

12 mm

Practical load capacity

<ul><li>shear: 450 N 2.5 )</li><li>pull-out load: 180 N 3 )</li></ul>

Thickness

0...25 mm fixture

Diameter

18 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.6 cm

Package 1 width

6.1 cm

Package 1 length

1.4 cm

Package 1 weight

20 g

Unit type of package 2

BB1

Number of units in package 2

50

Package 2 height

10.6 cm

Package 2 width

8.2 cm

Package 2 length

10.6 cm

Package 2 weight

1.112 kg

Unit type of package 3

CAR

Number of units in package 3

900

Package 3 height

15 cm

Package 3 width

27 cm

Package 3 length

65 cm

Package 3 weight

20 kg
