Mureva Junction Boxes Mureva Box 291 x 241 x 127mm, IP55, Halogen Free
Item Number: 05057
Datasheet

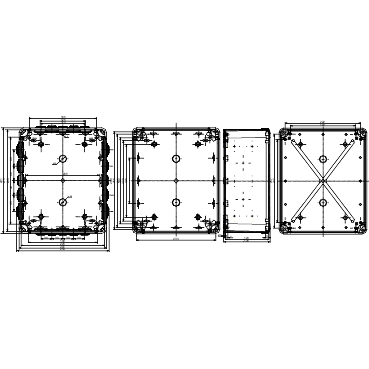

Product Dimensions
Width241 mm
Height291 mm
Depth128 mm
Specifications
Design
Colour code
RAL 7035
Warranty
18 months
Physical
Cable entry
smooth faces
Device mounting
surface
Height
291 mm
Width
241 mm
Depth
128 mm
Ip degree of protection
IP55
Ik degree of protection
IK07
Ambient air temperature for operation
-5...40 °C
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Box category
big size junction box
Cover fixing
quarter turn screw
Housing material
polypropylene
Internal height
275 mm
Internal width
225 mm
Internal depth
120 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13 cm
Package 1 width
23.8 cm
Package 1 length
28.6 cm
Package 1 weight
1.012 kg
