Mureva Junction Boxes Mureva Box 116 x 116 x 62mm, IP55, Halogen Free
Item Number: 05045
Datasheet

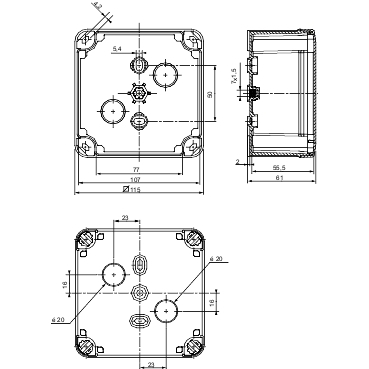

Product Dimensions
Width115 mm
Height115 mm
Depth61 mm
Specifications
Design
Colour code
RAL 7035
Warranty
18 months
Physical
Cable entry
smooth faces
Device mounting
surface
Height
115 mm
Width
115 mm
Depth
61 mm
Ip degree of protection
IP55
Ik degree of protection
IK07
Ambient air temperature for operation
-5...40 °C
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Box category
medium size junction box
Cover fixing
quarter turn screw
Housing material
polypropylene
Internal height
107 mm
Internal width
107 mm
Internal depth
55 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.2 cm
Package 1 width
11.4 cm
Package 1 length
11.4 cm
Package 1 weight
0.15 kg
