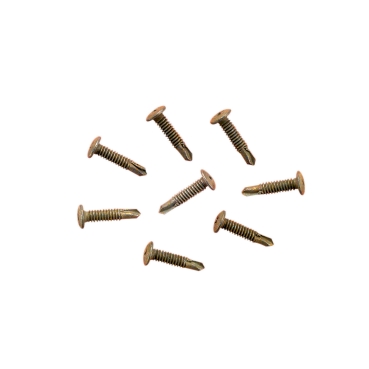

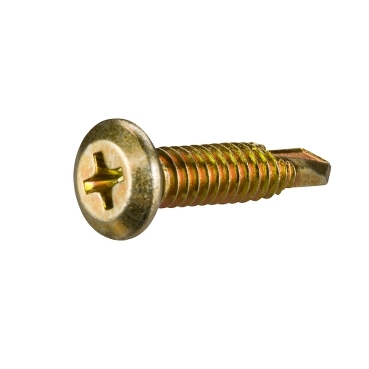

Clipsal - General Accessories Wafer Head Self Drilling, 10 x 22mm, Bucket 500

Item Number: 357WF22B

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554231873	-
5	CAR	29311554150383	-

Specifications

Design

Product brand	Clipsal

Physical

Length	22 mm
Screwdriver shape	Philips
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0603007EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Material	steel

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Screw gauge	10g
Shape of screw head	wafer head pozidriv No 2
Size of screw head	9 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.0 cm
Package 1 width	14.0 cm
Package 1 length	13.0 cm
Package 1 weight	1436.8 g
Unit type of package 2	CAR
Number of units in package 2	5
Package 2 height	11.7 cm
Package 2 width	25.0 cm
Package 2 length	31.0 cm
Package 2 weight	7.184 kg
Total lifecycle carbon footprint	12 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.2931968000000005
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.216065984
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.39917177600000003
Carbon footprint of the installation phase [a5]	0.4 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.98984992
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	11.898284480000001
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
