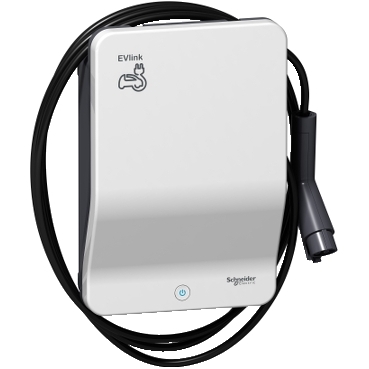

EVlink Smart Wallbox Smart Wallbox 7.4 kW, Attached cable T1, RFID

Item Number: EVB1A7PARI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width330 mm

Height480 mm

Depth170 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480935275	-

Specifications

Design

Range	EVlink
Product or component type	charging station
Product compatibility	not compatible with RFID badges with chips Mifare Classic 1K

Physical

Mounting mode	wall-mounted pedestal mount
Socket number	1
Connector type	RS485 for metering Modbus 3 RJ45 for Ethernet LAN connection
Control type	can be controlled by remote 1 multi-colour illuminated push-button, function: stop/restart
Local signalling	1 multi-colour LED, function: status indication
Communication port protocol	OCPP 1.6
Function available	load management diagnosis capabilities charge detail records
Height	480 mm
Width	330 mm
Depth	170 mm
Standards	IEC 61851-22 IEC 61851-1 IEC 62196-2 IEC 62196-1
Product certifications	CB CE RCM
Ip degree of protection	IP54 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-40...80 °C
Relative humidity	5...95 %
Net weight	7.7 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1605005
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

China carbon footprint certification	Not certified
China energy label	N/A
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Product name	EVlink Smart Wallbox
Device short name	EVB1
Poles description	1P + N for power circuit
Offer type	standard
[us] rated supply voltage	220...240 V AC 50/60 Hz
Nominal output power	7.4 kW 32 A 222...240 V
Access control system	badge RFID conforming to ISO/IEC 14443 A and B badge RFID conforming to ISO/IEC 15693
Socket outlet type	cable T1
Output type	right side T1 attached cable / silver plated contacts 4.5 m
Earthing system	compatible IT with additional isolation transformer on the power supply TN-S TT
Number of inputs	6
Input type	binary for power limitation closing contact binary for delayed charging closing contact
Operating mode	standalone clustered architecture
Web server	embedded
Ethernet service	configuration via web server
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	27 cm
Package 1 width	40 cm
Package 1 length	53.5 cm
Package 1 weight	9.836 kg
Sustainable packaging	No
Pvc free	N/A
Halogen-free status	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	N/A
Product contributes to saved and avoided emissions	No
Removable battery	No
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI1605005
Removable battery	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
