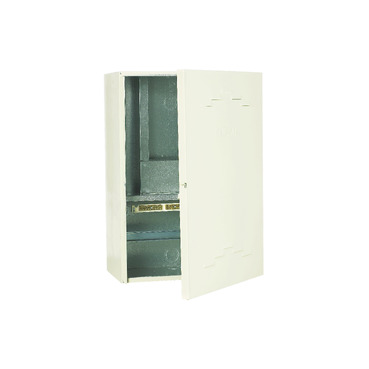

Clipsal Resi MAX Meter Box Tasmania 21 Modules padlockable
Item Number: 230DRAT
This Resi MAX product is a surface or semi flush mounted meter box with a plain door. It is a ventilated door with door retainer. It contains 21 modules of 18mm. The dimensions are (W) 470mm x (H) 680mm x (D) 280mm.
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 9311554131722 | - |
Specifications
Design
| Range | Resi MAX |
|---|---|
| Product or component type | meter box |
| Device application |
|
Physical
| Provided equipment |
|
|---|---|
| Function available |
|
| Cable entry | knock-out rear and bottom |
| Width | 470 mm |
| Height | 680 mm |
| Depth | 280 mm |
| Ip degree of protection | IP23 |
| Standards | AS/NZS 3000 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2410044EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | iron (galvanised) |
|---|
Others
| Average percentage of recycled plastic content | 0 % |
|---|---|
| Package 1 bare product quantity | 1 |
| Legacy weee scope | In |
| Outside of Europe | |
| Warranty duration(in months) bmecat | 18 |
| Weee label | N/A |
| Enclosure/cubicle description | plain door enclosure |
| Targeted country | Australia |
| Targeted region | Tasmania |
| Enclosure mounting |
|
| Number of modules | 21 |
| Protection device type | miniature circuit breaker (MCB) - 63 A - 1P - 6 kA |
| Door type | ventilated removable door with door retainer |
| Door opening side | right |
| Lock type | padlockable |
| Protective treatment | epoxy powder coat |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 68.0 cm |
| Package 1 width | 47.0 cm |
| Package 1 length | 28.0 cm |
| Package 1 weight | 15.0 kg |
| Green premium status for reporting | Green Premium product |
| Total lifecycle carbon footprint | 211 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 99.98808822907131 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 100 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 7.3392741394843 |
| Carbon footprint of the distribution phase [a4] | 7 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.04143763063861155 |
| Carbon footprint of the installation phase [a5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 61.254636620083915 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 61 kg CO2 eq. |
| Sustainable packaging | Yes |
| Carbon footprint of the end-of-life phase [c1 to c4] | 42.141445345299175 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 42 kg CO2 eq. |
| Take-back | No |
| Product contributes to saved and avoided emissions | No |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 210.76488196457734 |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | Yes |
| End of life manual availability | N/A |
| Take-back | No |
| Warranty (in months) | 18 |
