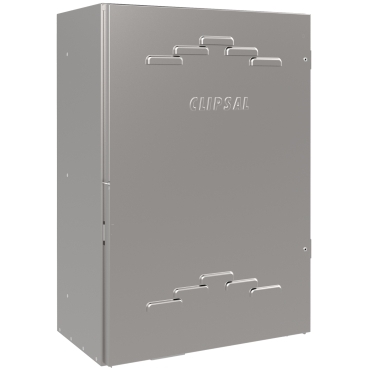

Clipsal Resi MAX Meter Box NSW with black laminated panel
Item Number: 230DRANS
This Resi MAX product is a surface or semi flush mounted meter box with a plain door. It is a ventilated door with door retainer. The dimensions are (W) 470mm x (H) 680mm x (D) 280mm.
Specifications
Design
Range
Resi MAX
Product or component type
meter box
Device application
- distribution
- metering
Physical
Provided equipment
- enclosure
- removable meter panel
Function available
- cable protection slide
- clips lead retainer
Cable entry
knock-out rear and bottom
Width
470 mm
Height
680 mm
Depth
280 mm
Ip degree of protection
IP23
Standards
AS/NZS 3000
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
iron (galvanised)
Others
Package 1 bare product quantity
1
Enclosure/cubicle description
plain door enclosure
Targeted country
Australia
Targeted region
New South Wales
Enclosure mounting
- surface
- semi flush
Protection device type
miniature circuit breaker (MCB) - 63 A - 2P - 6 kA
Door type
ventilated removable door with door retainer
Door opening side
right
Lock type
padlockable
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
68 cm
Package 1 width
28 cm
Package 1 length
47 cm
Package 1 weight
14.6 kg
Documents & downloads
hide showFilter items
-
All
-
Other technical guide
-

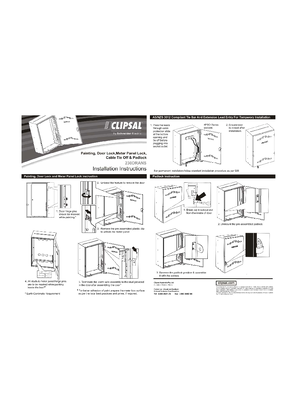

Installation Instruction
-

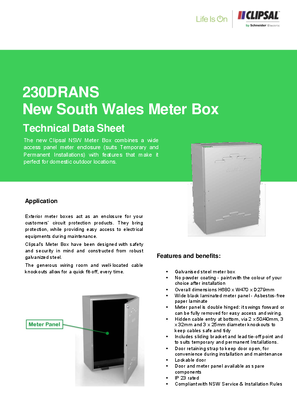

Specification Guide
