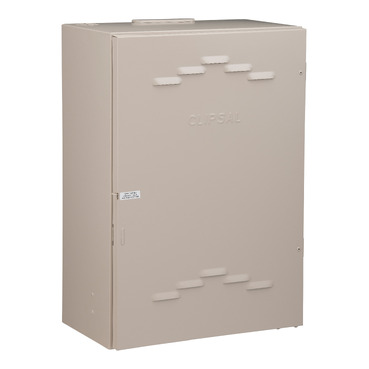

Resi MAX Meter Boxes Metal Meter Box Switch Board, Din Rail, 21 Module, H680 x W470 x D280mm
Item Number: 230DRAQTP
Specifications
Design
Range
Resi MAX
Product or component type
meter box
Device application
- metering
- distribution
Physical
Provided equipment
- fascia plate
- removable meter panel
- earth and neutral grid assembly
- DIN rail
- enclosure
Function available
- cable protection slide
- clips lead retainer
Cable entry
- knock-out top and bottom
- knock-out rear
Width
470 mm
Height
680 mm
Depth
280 mm
Ip degree of protection
IP23
Standards
AS/NZS 3000
Eu rohs directive
Under investigation
Circularity profile
N/A
Material
Material
iron (galvanised)
Others
Commercial status history
- SESA301466
- Wed Oct 09 00:28:00 EDT 2024
- From Unitary Local
- From 08 to 18
Package 1 bare product quantity
1
Enclosure/cubicle description
plain door enclosure
Targeted country
Australia
Targeted region
Queensland
Enclosure mounting
- semi flush
- surface
Number of modules
21
Protection device type
miniature circuit breaker (MCB) - 63 A - 2P - 6 kA
Door type
ventilated removable door with door retainer
Door opening side
right
Lock type
padlockable
Protective treatment
epoxy powder coat
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
70 cm
Package 1 width
29.5 cm
Package 1 length
48.9 cm
Package 1 weight
18.66 kg
Documents & downloads
hide showFilter items
-
All
-

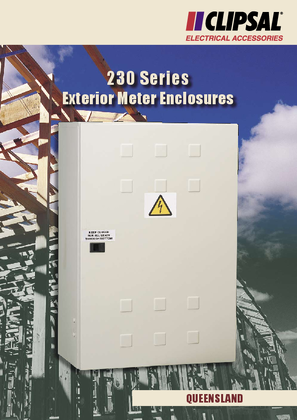

Product Brochures
-

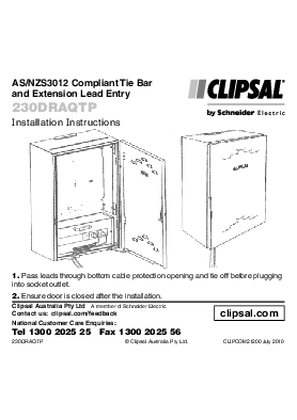

Installation Instruction
-
Specification Guide
Frequently Asked Questions
How many meters can fit in the 230DRAQTPL?
Hide Show
The 230DRAQTPL is suitable for up to three meters plus one Ripple Control Meter for Queensland Authorities.
