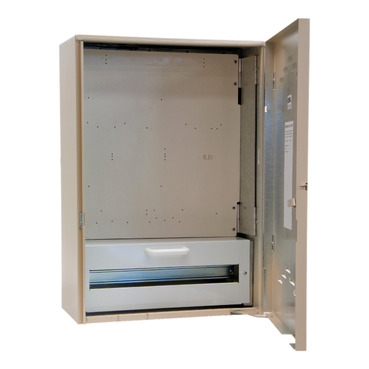

Resi MAX Meter Boxes Metal Meter Box Switch Board, Din Rail, 21 Module, H680 x W470 x D280mm
Item Number: 230DRAQ
Specifications
Design
Range
Resi MAX
Product or component type
meter box
Device application
- metering
- distribution
Physical
Provided equipment
- enclosure
- earth and neutral grid assembly
- removable meter panel
- fascia plate
- DIN rail
Function available
cable protection slide
Cable entry
- knock-out top and bottom
- knock-out rear
Width
470 mm
Height
680 mm
Depth
280 mm
Ip degree of protection
IP23
Standards
AS/NZS 3000
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
iron (galvanised)
Others
Package 1 bare product quantity
1
Enclosure/cubicle description
plain door enclosure
Targeted country
Australia
Targeted region
Queensland
Enclosure mounting
- semi flush
- surface
Number of modules
21
Protection device type
miniature circuit breaker (MCB) - 63 A - 2P - 6 kA
Door type
ventilated removable door with door retainer
Door opening side
right
Lock type
padlockable
Protective treatment
epoxy powder coat
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
29.5 cm
Package 1 width
69.5 cm
Package 1 length
48.5 cm
Package 1 weight
17000 g
Documents & downloads
hide showFrequently Asked Questions
How many meters can fit in the 230DRAQTPL?
Hide Show
The 230DRAQTPL is suitable for up to three meters plus one Ripple Control Meter for Queensland Authorities.
