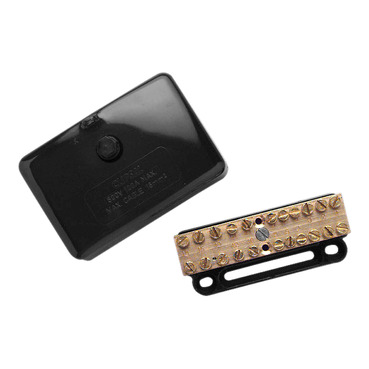

Clipsal - Max 4 Mini Neutral link 100 A 500 V 16 hole with cover Black
Item Number: L16
Datasheet
Close
Specifications
Design
Range
MAX9
Product brand
Clipsal
Range of product
Blue Point
Product or component type
neutral link
Physical
[in] rated current
100 A
[ue] rated operational voltage
500 V
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
16 mm²
Number of mounting holes
16
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
50 cm
Package 1 width
55 cm
Package 1 length
85 cm
Package 1 weight
0.156 kg
Sustainable packaging
No
Packaging made with recycled cardboard
Yes
End of life manual availability
N/A
Warranty (in months)
18
