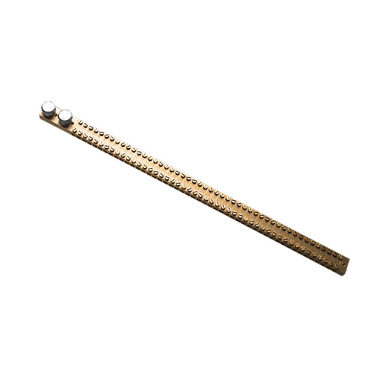

Clipsal - Max 4 Link bar 165 A 48 hole length 393mm2 hexagon head
Item Number: BP165D48
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
- Blue Point
- Series BP165D
Product or component type
link bar
Physical
[in] rated current
165 A
Connector type
screw terminals
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.2 cm
Package 1 width
8.0 cm
Package 1 length
39.3 cm
Package 1 weight
469.0 g
Unit type of package 2
CAR
Number of units in package 2
10
Package 2 height
7.5 cm
Package 2 width
19.0 cm
Package 2 length
44.0 cm
Package 2 weight
4.9 kg
Sustainable packaging
No
Packaging made with recycled cardboard
Yes
End of life manual availability
N/A
Warranty (in months)
18
