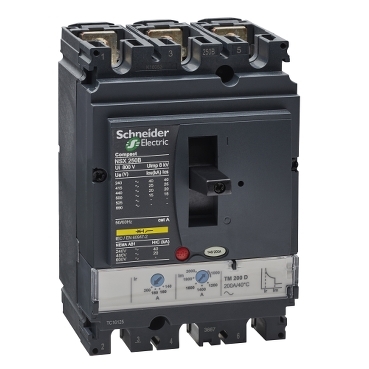

Compact NSX <630 Circuit breaker ComPact NSX250B, 25kA/415VAC, TMD trip unit 200A, 3 poles 3d

Item Number: LV431111

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width105 mm

Height161 mm

Depth86 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480013812	-

Specifications

Design

Range	ComPact
Range of product	ComPact NSX100...250
Product or component type	circuit breaker
Device application	distribution
Warranty	18 months

Physical

[in] rated current	200 A at 40 °C
[ue] rated operational voltage	690 V AC 50/60 Hz
Control type	toggle
Mounting mode	fixed
Mechanical durability	20000 cycles
Electrical durability	5000 cycles at 690 V In 10000 cycles at 690 V In/2 10000 cycles at 440 V In 20000 cycles at 440 V In/2
Mounting support	backplate
Protection type	L : for overload protection (thermal) I : for short-circuit protection (magnetic)
Width	105 mm
Height	161 mm
Depth	86 mm
Net weight	2.4 kg
Standards	EN/IEC 60947
Product certifications	CCC EAC Marine
Ip degree of protection	IP40 conforming to IEC 60529
Ik degree of protection	IK07 conforming to IEC 62262
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-50...85 °C
Relative humidity	0...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2301020EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Important message	This product has been switched to new ComPacT range and is no longer commercialized.
Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	ComPact NSX
Device short name	NSX250B
Poles description	3P
Protected poles description	3t
Network type	AC
Network frequency	50/60 Hz
Suitability for isolation	yes conforming to EN/IEC 60947-2
Utilisation category	category A
Breaking capacity	15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code	B 25 kA 415 V AC
Trip unit name	TM-D
Trip unit technology	thermal-magnetic
Trip unit protection functions	LI
[ui] rated insulation voltage	800 V AC 50/60 Hz
[uimp] rated impulse withstand voltage	8 kV
[ics] rated service breaking capacity	20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Upside connection	front
Downside connection	front
Connection pitch	35 mm
Trip unit rating	200 A at 40 °C
Long time pick-up adjustment type ir	adjustable
Long time pick-up adjustment range	0.7...1 x In
Long time delay adjustment type	fixed
[tr] long-time delay adjustment range	120...400 s at 1.5 x In 15 s at 6 x Ir
Short-time pick-up adjustment type isd	adjustable
[isd] short-time pick-up adjustment range	5...10 x In
Short-time delay adjustment type	fixed
Earth-leakage protection	without
Number of slots	5 slot(s)
Compatibility code	NSX250
Overvoltage category	class II
Electrical shock protection class	class II
Pollution degree	3 conforming to IEC 60664-1
Operating altitude	0...2000 m without derating 2000 m...5000 m with derating
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	14.0 cm
Package 1 width	11.0 cm
Package 1 length	18.5 cm
Package 1 weight	1.998 kg
Unit type of package 2	S04
Number of units in package 2	12
Package 2 height	30.0 cm
Package 2 width	40.0 cm
Package 2 length	60.0 cm
Package 2 weight	24.742 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	629 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	10.4246868293
Carbon footprint of the manufacturing phase [a1 to a3]	10 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.4345796195
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2100434049
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	617.3728
Carbon footprint of the use phase [b2, b3, b4, b6]	617 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3230229951
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Total lifecycle carbon footprint	628.7651328488
Scip number	3874e08b-fcb8-4aa9-87c4-d36abebf2833
End of life manual availability	ENVEOLI2301020EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
