Acti9 Single push-button 1NO grey, indicator light green 12-48Vac/dc

Item Number: A9E18038

1 PCE 0

This Acti9 iPB product is a modular push-button with an indicator light used to control electric circuits. It has a normally open contact (NO). The push-buttons is grey. The indicator light is a 0.3W green LED with a service life of 100000 hours. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m.

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height82 mm

Depth71.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480088308	-
12	BB1	13606480088305	-

Specifications

Design

Range of product	iPB
Range	Acti9
Product or component type	push-button
Market segment	small commercial residential

Physical

Standards	IEC 60669-1 IEC 60947-5-1
[ie] rated operational current	20 A
[ue] rated operational voltage	250 V AC
Control type	1 push-button grey
Local signalling	LED indicator green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
Mounting mode	fixed
Mounting support	35 mm symmetrical DIN rail
Height	82 mm
Width	18 mm
Depth	71.5 mm
Electrical durability	AC-22: 30000 cycles AC 50/60 Hz
Connections - terminals	staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule
Wire stripping length	9 mm
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...80 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1103001EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	108
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iPB
Device short name	iPB
Contacts type and composition	1 NO
Signalling circuit voltage	AC: 12...48 V 50/60 Hz DC: 12...48 V
Comb busbar and distribution block compatibility	upside: Clario upside: Librio upside: ProDis
9 mm pitches	2
Tightening torque	1 N.m
Compatibility code	iPB
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.900 cm
Package 1 width	7.200 cm
Package 1 length	9.000 cm
Package 1 weight	45.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	7.800 cm
Package 2 width	10.000 cm
Package 2 length	23.200 cm
Package 2 weight	601.000 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.918 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.9030565337345908
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0066239985481057395
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.019322783404768208
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.548735401735347
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.2217622526717715
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.6995009700945833
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	1f68db37-1d35-43e3-91db-a07321e19eb2
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18038_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18038_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9E18038_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Oecd pfas regulation	Item contains PFAS Chemicals
Pop directive	No POPs
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Acti9 Single push-button 1NO grey, indicator light green 12-48Vac/dc

Item Number: A9E18038

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Environmental Disclosure

Declaration of Conformity

Certificates (MSDS)

Declaration of Conformity (Sustainability)

Push-button and signal lamp - 3D CAD

Acti9 iIL Three-phase voltage indicator light - Red - 230-400 Vac - Product Environmental Profile

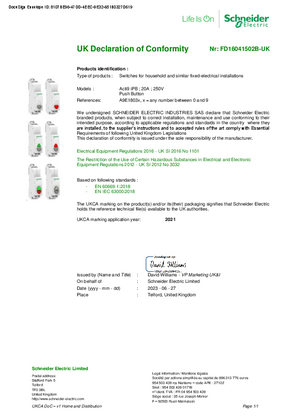

UK Declaration of Conformity UKCA

UK_DoC_FD16041502B_Acti9_iPB

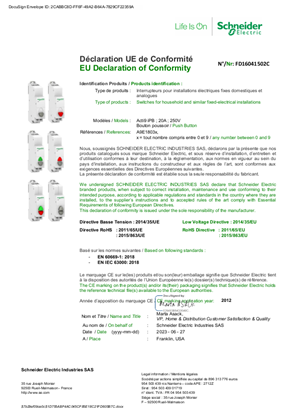

DoC_EU_FD16041502C_Acti9 iPB Switch PushButton

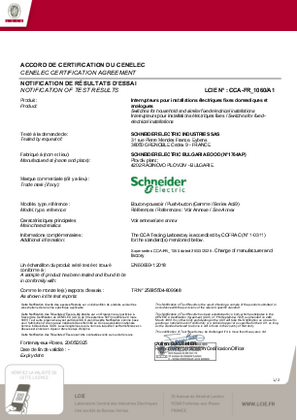

CCA Certificate
