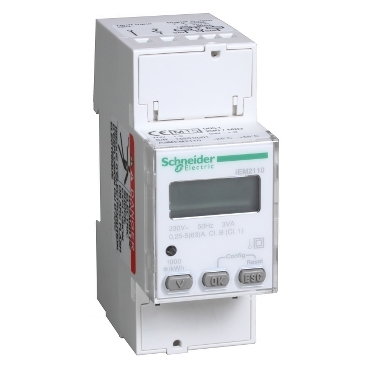

Acti9 Modular single phase power meter iEM2110, 230V, 63A with pulse, MID

Item Number: A9MEM2110

1 PCE 0

Where To Buy

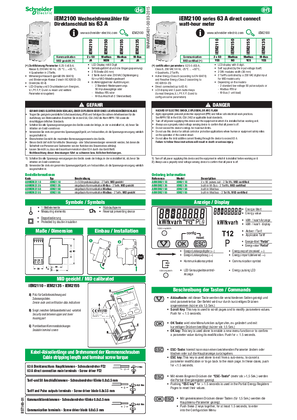

Datasheet

Download

Product Dimensions

Width36 mm

Height90 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485434636	-

Specifications

Design

Range	Acti9
Product or component type	energy meter
Market segment	buildings small building cost management: billing: panelboard buildings medium building cost management: billing: panelboard buildings large building cost management: billing: panelboard buildings multi-site cost management: billing: panelboard data center cost management: billing: panelboard healthcare cost management: billing: panelboard industry cost management: billing: panelboard buildings small building cost management: cost allocation: panelboard buildings medium building cost management: cost allocation: panelboard buildings large building cost management: cost allocation: panelboard buildings multi-site cost management: cost allocation: panelboard data center cost management: cost allocation: panelboard healthcare cost management: cost allocation: panelboard industry cost management: cost allocation: panelboard
Device application	sub billing partial meter multi-tariff

Physical

[in] rated current	63 A
Rated voltage	230 V +/- 20 %
Communication port protocol	-
Local signalling	red LED: accuracy checking 1...1000 p/kWh
Mounting mode	clip-on
Mounting support	DIN rail
Connections - terminals	power circuit: tunnel type terminals (bottom) 1 1.65-33 mm² cable(s) solid power circuit: tunnel type terminals (bottom) 1 1.65-33 mm² cable(s) stranded with cable end pulse output: screw clamp terminals (top) 1 1-4 mm² cable(s) solid pulse output: screw clamp terminals (top) 1 1-2.5 mm² cable(s) stranded with cable end
Wire stripping length	power circuit: 17 mm pulse output: 6 mm
Standards	IEC 62052-31 IEC 62053-21 IEC 62053-23 IEC 62052-11
Product certifications	MID conforming to EN 50470-1 MID conforming to EN 50470-3 CE
Ip degree of protection	IP40 front panel: conforming to IEC 60529 IP20 casing:
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-25...70 °C
Relative humidity	0...95 % at 55 °C
Width	36 mm
Height	90 mm
Depth	70 mm
Net weight	0.175 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	X
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	29
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iEM2100
Device short name	iEM2110
Poles description	1P + N
Type of measurement	active and reactive energy active and reactive power current voltage
Metering type	active, reactive, apparent energy (signed, four quadrant)
Accuracy class	class 1 active energy conforming to IEC 62053-21 class B active energy conforming to EN 50470-3 class 2 reactive energy conforming to IEC 62053-23
Analogue input type	direct input
Max current	63 A
[ib] basic current	5 A
Network frequency	60 Hz 50 Hz
Frequency measurement range	45...65 Hz
Technology type	electronic
Display type	LCD display
Sampling rate	32 samples/cycle
Measurement current	0.25...63 A
Display digits	8
Maximum value measured	999999.99 kWh
Information displayed	tariff (2)
Communication port support	-
Number of inputs	1 digital
Number of outputs	2 pulse energy monitoring:
Output voltage	3...33 V AC@90 mA 5...70 V DC@90 mA
Impulse duration	30...100 ms
[us] rated supply voltage	96...276 V AC 50 Hz
Maximum power consumption in va	3 VA at 240 V AC
Maximum power consumption in w	1 W
[uimp] rated impulse withstand voltage	6 kV 1.2/50 µs
Tightening torque	power circuit: 2 N.m PZ2 screwdriver pulse output: 0.5...0.5 N.m3.5 mm
Compatibility code	iEM2110
Overvoltage category	III
Pollution degree	2
Flame retardance	V0 conforming to UL 94
Operating altitude	< 2000 m
9 mm pitches	4
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.2 cm
Package 1 width	8.0 cm
Package 1 length	9.8 cm
Package 1 weight	216.0 g
Unit type of package 2	S02
Number of units in package 2	29
Package 2 height	15 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	6.719 kg
Sustainable packaging	No
Energy efficiency optimized	False
Average percentage of recycled metal content	0 %
China rohs label	1
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
