Acti9 Modular single phase power meter iEM2000T, 230V, 40A without display

Item Number: A9MEM2000T

1 PCE 0

Where To Buy

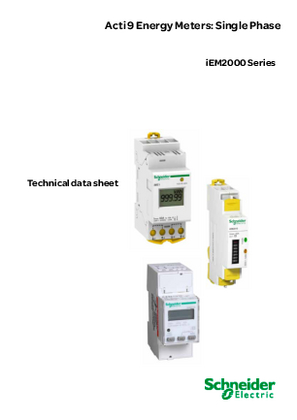

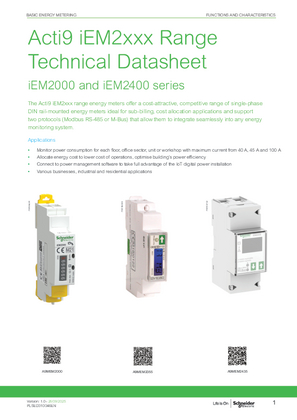

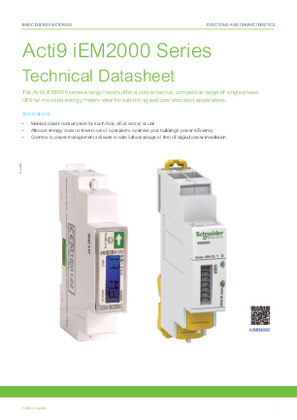

Datasheet

Download

Product Dimensions

Width18 mm

Height96.5 mm

Depth69 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480400575	-

Specifications

Design

Range	Acti9
Product or component type	energy meter
Market segment	buildings small building cost management: billing: panelboard buildings medium building cost management: billing: panelboard buildings large building cost management: billing: panelboard buildings multi-site cost management: billing: panelboard data center cost management: billing: panelboard healthcare cost management: billing: panelboard industry cost management: billing: panelboard buildings small building cost management: cost allocation: panelboard buildings medium building cost management: cost allocation: panelboard buildings large building cost management: cost allocation: panelboard buildings multi-site cost management: cost allocation: panelboard data center cost management: cost allocation: panelboard healthcare cost management: cost allocation: panelboard industry cost management: cost allocation: panelboard
Device application	sub billing
Market segment	residential small commercial
Warranty	18 months

Physical

[in] rated current	40 A
Rated voltage	230 V +/- 20 %
Communication port protocol	-
Local signalling	green indicator light: power ON yellow indicator light: metering and activity 3200 p/kWh
Mounting mode	clip-on
Mounting support	DIN rail
Connections - terminals	power circuit: tunnel type terminals (bottom) 1 10-10 mm² cable(s) remote transfer: tunnel type terminals (top) 1 4-4 mm² cable(s)
Standards	IEC 61557-12 IEC 62053-21
Product certifications	CE
Ip degree of protection	IP40 front panel: conforming to IEC 60529 IP20 casing:
Ambient air temperature for operation	-25...65 °C
Ambient air temperature for storage	-40...70 °C
Relative humidity	0...95 % at 55 °C
Width	18 mm
Height	96.5 mm
Depth	69 mm
Net weight	0.073 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0905002EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	38
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Acti9 iEM2000
Device short name	iEM2000T
Poles description	1P + N
Type of measurement	active power
Accuracy class	class 1 active energy conforming to IEC 62053-21
Analogue input type	direct input
Max current	40 A
[ib] basic current	5 A
Network frequency	60 Hz 50 Hz
Frequency measurement range	48...62 Hz
Technology type	electronic
Display type	without display
Sampling rate	32 samples/cycle
Measurement current	0.25...40 A
Display digits	0
Communication port support	-
Number of inputs	0
Number of outputs	1 pulse energy monitoring:
Output voltage	5...35 V DC@20 mA
Impulse duration	120 ms
Maximum power consumption in va	10 VA at 240 V AC
Tightening torque	power circuit: 1.2...1.2 N.m remote transfer: 0.8...0.8 N.m
Compatibility code	iEM2000T
Operating altitude	< 2000 m
9 mm pitches	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.500 cm
Package 1 width	3.300 cm
Package 1 length	10.000 cm
Package 1 weight	110.000 g
Unit type of package 2	S02
Number of units in package 2	38
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.982 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	27 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.565274247949666
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.2261541491768315
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0021109194462209
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	25.12692169457233
Carbon footprint of the use phase [b2, b3, b4, b6]	25 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.1899742720582566
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	27.11043528320331
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	1370256b-4f45-45cb-ba74-d245fc174cf9
China rohs label	7

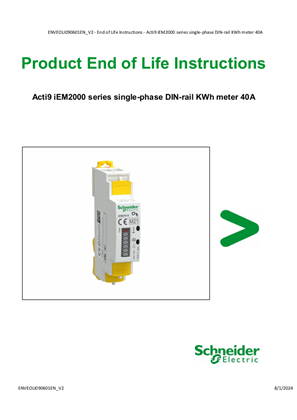

End of life manual availability	ENVEOLI090601EN_V2
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
