Acti9 Linear switch 2 C/O, 20A, 250 V AC, 2 positions

Home ProductsCircuit ProtectionActi9Linear switch

Acti9 Linear switch 2 C/O, 20A, 250 V AC, 2 positions

Item Number: A9E18071

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height82 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

changeover switch

Device application

electrical circuit control

Market segment

  • residential
  • small commercial

Warranty

18 months

Physical

[ue] rated operational voltage

250 V AC 50/60 Hz

Standards

  • IEC 60669-1
  • IEC 60947-5-1

[ie] rated operational current

20 A

Control type

toggle 2 positions

Marking

0 - 1

Mounting mode

clip-on

Mounting support

DIN rail

Height

82 mm

Width

36 mm

Depth

75 mm

Electrical durability

AC-22: 30000 cycles cos Phi = 0.8

Connections - terminals

  • staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² flexible
  • staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² rigid without cable end

Wire stripping length

9 mm

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20...50 °C

Ambient air temperature for storage

-40...70 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

6

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

54

Product name

Acti9 iSSW

Device short name

iSSW

Poles description

2P

Contacts type and composition

2 C/O

9 mm pitches

4

Tightening torque

1 N.m

Compatibility code

iSSW

Tropicalisation

2

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

3.5 cm

Package 1 length

7.5 cm

Package 1 weight

88 g

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

9.6 cm

Package 2 width

8 cm

Package 2 length

23 cm

Package 2 weight

594 g

Unit type of package 3

S03

Number of units in package 3

54

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

5.888 kg

Sustainable packaging

No

Halogen-free status

Product contains halogen above thresholds

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

e5f22bd9-8e0c-4771-b932-618a392a4c8b

Halogen-free status

Product contains halogen above thresholds

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Linear switch - iSSW - 20A - 250 V AC - 2 positions - 3D CAD
ZIP

Linear switch - iSSW - 20A - 250 V AC - 2 positions - 3D CAD

VERSION

1.0

DATE

23 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
CCA Certificate
ZIP

CCA Certificate

VERSION

1.0

DATE

14 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 488.1 KB
NF Certificate
ZIP

NF Certificate

VERSION

1.0

DATE

03 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 466.1 KB
CB Test Certificate
ZIP

CB Test Certificate

VERSION

1.0

DATE

03 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 416.6 KB

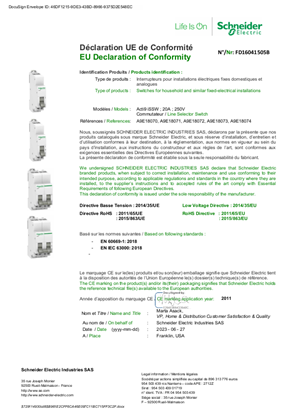

DOC_UE_FD16041505B_iSSW Switch Selector
