Acti9 Double control input auxiliary iACTc 24…48 V AC

Item Number: A9C18309

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width18 mm

Height81 mm

Depth60 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480097935	-

Specifications

Design

Range of product	iCT
Range	Acti9
Product or component type	double control input auxiliary
Market segment	small commercial residential
Warranty	18 months

Physical

Mounting mode	fixed, on the left of CT
Mounting support	DIN rail
Height	81 mm
Width	18 mm
Depth	60 mm
Standards	IEC/EN 61095
Connections - terminals	control circuit: tunnel type terminals 2 cable(s) 2.5-2.5 mm² flexible control circuit: tunnel type terminals 2 cable(s) 1.5-1.5 mm² rigid control circuit: tunnel type terminals 1 cable(s) 1.5-2.5 mm² rigid control circuit: tunnel type terminals 1 cable(s) 1.5-2.5 mm² flexible with ferrule control circuit: yellow clips
Wire stripping length	9 mm
Range compatibility	Acti9 iCT
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-5...50 °C
Ambient air temperature for storage	-40...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand labelled
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	24
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	iACTc
[uc] control circuit voltage	24...48 V AC 50/60 Hz impulse 250 ms 24...48 V AC 50/60 Hz maintained
[us] rated supply voltage	24...48 V AC at 50/60 Hz
Maximum output current	0.2 A holding 2 A inrush
Hold-in power consumption in va	3 VA
9 mm pitches	2
Overvoltage category	III
[uimp] rated impulse withstand voltage	4 kV
[ui] rated insulation voltage	440 V
Tightening torque	0.8...0.8 N.m
Compatibility code	iACTc
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.500 cm
Package 1 width	7.900 cm
Package 1 length	9.000 cm
Package 1 weight	88.000 g
Unit type of package 2	S01
Number of units in package 2	24
Package 2 height	15.000 cm
Package 2 width	15.000 cm
Package 2 length	40.000 cm
Package 2 weight	2.295 kg
Sustainable packaging	No
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	874eaa72-407d-4df4-8e46-7d96313f1338
China rohs label	3
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Installation Instruction
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Acti9 double control input auxiliary iACTc - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

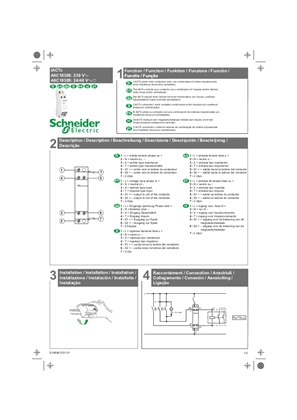

iACTc - Contactor control
