Acti9 Communication Module Cloud Connected

Item Number: A9XELC10

1 PCE 0

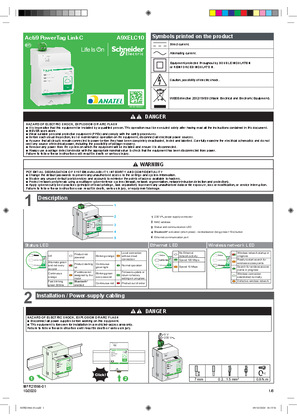

This Acti9 PowerTag Link C is a smart communication module. It is designed for basic energy metering and laod alarming. Up to 20 wireless devoices can be connected on it.

Where To Buy

Datasheet

Download

Product Dimensions

Width54 mm

Height85 mm

Depth62 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606481370518	-

Specifications

Design

Range	Acti9
Product or component type	smart communication module
Device application	basic energy metering load alarming

Physical

Protection type	overvoltage at 1 kV for ETHERNET overvoltage at 0.5 kV for auxiliary supply
Inrush current	3 A
Mounting position	horizontal/vertical on DIN rail
Connections - terminals	RJ45 connector qty: 1 for ETHERNET, ordered separately plug-in connector qty: 1 for supply circuit
Clamping connection capacity	0.2...1.5 mm², rigid for supply circuit 0.2...1.5 mm², flexible for supply circuit 0.2...1.5 mm², flexible with ferrule for supply circuit
Wire stripping length	supply circuit: 7 mm
Height	85 mm
Width	54 mm
Depth	62 mm
Net weight	133 g
Range compatibility	Acti 9 PowerTag ComPact PowerTag
Ip degree of protection	IP20 IP40 (modular enclosure)
Environmental characteristic	corrosive 3C2 conforming to IEC 60721-3-3 salt mist 2 conforming to IEC 60068-2-52
Relative humidity	93 % at 40 °C
Ambient air temperature for operation	-25...55 °C
Ambient air temperature for storage	-40...85 °C

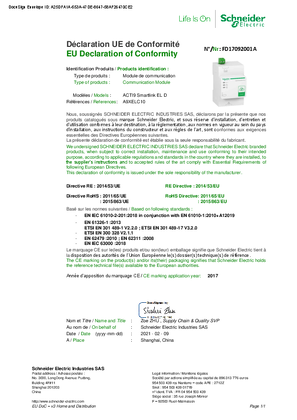

Standards	EN 300-328 EN 301-489-1 EN 301-489-17 EN/IEC 60950-1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1604024EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 2 bare product quantity	36
Product name	Acti9 PowerTag Link
Device short name	PowerTag Link C
Connected auxiliaries	up to 20 wireless devices
[us] rated supply voltage	110...230 V AC + 15 %
Supply voltage limits	19.2...28.8 V
Connectivity to devices	wireless energy sensor
Upstream connectivity	cloud
Communication service	Ethernet
Transmission support medium	radio frequency 2.4-2.4835 GHz PowerTag 20
User interface	smartphone app
Immunity to microbreaks	10 ms
Reset	factory reset on front face
Location of connection	upstream
Overvoltage category	III
9 mm pitches	6 useful
Commissioning protocol	Bluetooth
Commissioning interface	mySchneider Electrician eSetup

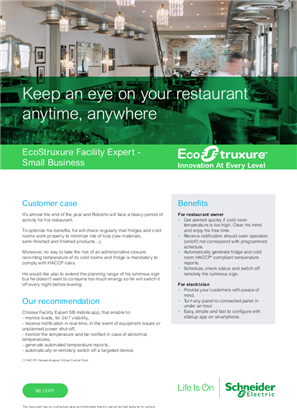

End user smartphone application	EcoStruxure Facility Expert Small Business
Compatibility code	Acti9 PowerTag Link C
Pollution degree	2
Electromagnetic compatibility	resistance to electrostatic discharge (air discharge), 8 kV, conforming to IEC 61000-4-2 resistance to electrostatic discharge (contact discharge), 4 kV, conforming to IEC 61000-4-2 resistance to radiated electromagnetic fields (80 MHz...3 GHz), 10 V/m, conforming to IEC 61000-4-3 power supply: resistance to fast transient (5...100 kHz), 2 kV, conforming to IEC 61000-4-4 communication bus: resistance to fast transient (5...100 kHz), 1 kV, conforming to IEC 61000-4-4 conducted EMC (0.15...80 MHz), 10 V, conforming to IEC 61000-4-6 immunity to magnetic fields at network frequency (continuous), 30 A/m, conforming to IEC 61000-4-8 immunity to magnetic fields at network frequency (pulsed), 100 A/m, conforming to IEC 61000-4-8 radiated emission (30...1000 MHz), class A, conforming to IEC 61131-3 Ed.3 conducted emission (0.15...30 MHz), class A, conforming to IEC 61131-2
Vibration resistance	1 gn, amplitude = 3.5 mm (f = 5-300 Hz)10 cycles conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Fire resistance	other parts: 650 °C ( 30 s ) conforming to IEC 60695-2 on connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2
Tropicalisation	2 conforming to IEC 60068-2
Operating altitude	0...2000 m operating 0...3000 m storage
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.200 cm
Package 1 width	8.400 cm
Package 1 length	11.000 cm
Package 1 weight	168.000 g
Unit type of package 2	S03
Number of units in package 2	36
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.480 kg
Sustainable packaging	No
Packaging made with recycled cardboard	Yes

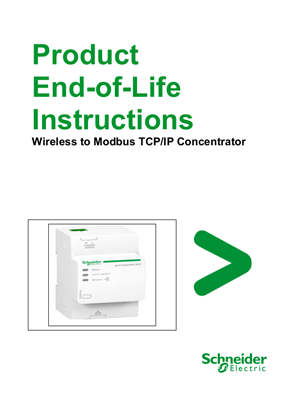

End of life manual availability	ENVEOLI1604024
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
